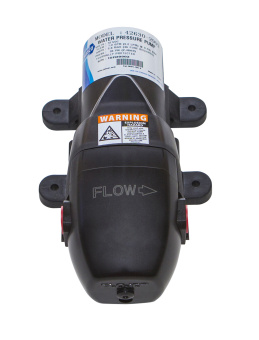

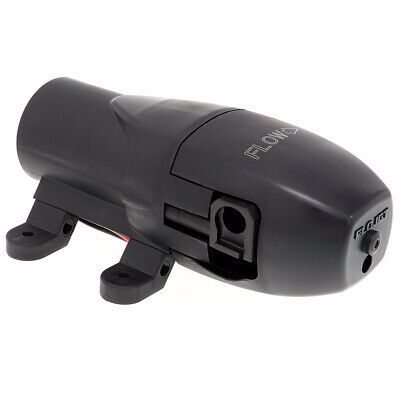

Jabsco 42630-3512-3C - Par Max 1 Pressure Controlled Pump 12V

Jabsco 42630-3512-3C - Par Max 1 Pressure Controlled Pump 12V

The Jabsco 42630-3512-3C Par Max 1 Pressure Controlled Pump is a reliable, self-priming water pump designed for marine and recreational water systems. Operating at 12V DC, it provides an efficient flow rate of 3.8 liters per minute (1 gallon per minute) with a pressure switch that activates at 1.5 bar (22 psi) and deactivates at 2.4 bar (35 psi). This pump is ideal for systems requiring consistent water pressure to a single outlet. It features a double-diaphragm design that allows it to self-prime up to 1.8 meters (5.9 feet) and run dry without damage, making it durable and versatile. The pump is made with high-quality EPDM and Santoprene elastomers for reliability and corrosion resistance, making it suitable for use in both saltwater and freshwater applications.

Key Features:

• 12V DC operation with 3.8 liters/min (1 gallon/min) flow rate for efficient water transfer.
• Pressure switch cuts in at 1.5 bar (22 psi) and cuts out at 2.4 bar (35 psi) for optimal pressure regulation.
• Double-diaphragm design self-primes up to 1.8 meters (5.9 feet) and can run dry without damage.
• Constructed with EPDM and Santoprene elastomers for enhanced durability and longevity in marine environments.
• IPX4-rated for water ingress protection, ensuring reliable performance in wet conditions.
• Compatible with 3/8" (10mm) or 1/2" (13mm) bore hose connections for versatile installation options.
• Built with fibre-reinforced polypropylene housing and stainless steel fasteners for corrosion resistance.
• Temperature range: 0°C to 43°C (32°F to 110°F), suitable for a variety of climates.

Specifications:

• Part Number: 42630-3512-3C
• Voltage: 12V DC (9V - 13.6V DC)
• Output: 3.8 liters/min (1 gallon/min) open flow
• Pressure Switch: Cuts in at 1.5 bar (22 psi), cuts out at 2.4 bar (35 psi)
• Fuse Size: 4A (order separately)
• Maximum Current: 3.5A at 35 PSI (2.4 Bar)
• Connections: 2x 3/8" (10mm) or 2x 1/2" (13mm) bore hose barbs
• Dimensions: 165mm (L) x 103mm (W) x 68mm (H)
• Weight: 0.6 kg (1.4 lb), 0.79 kg (approx. 1.09 kg packed)
• Maximum Recommended Head: 1.5 meters (4.9 feet)
• Self-Priming: Up to 1.8 meters (5.9 feet)
• Material: Fibre-reinforced polypropylene housing, stainless steel fasteners, EPDM/Santoprene elastomers, and Santoprene diaphragm
• Temperature Range: 0°C - 43°C (32°F - 110°F)
• Wire Size: 18 AWG (1mm²)
• Replaces: WP-006, Jabsco 42630-2992-P, 42630-2900 & 42630-3992-P
• Warranty: 3 Years

Applications:

• Ideal for use in marine, RV, and other recreational water systems that require a self-priming, pressure-controlled pump.
• Perfect for applications requiring consistent water pressure to a single outlet such as water delivery systems, washdowns, and more.
• Suitable for both saltwater and freshwater applications, offering versatility and reliability in various environments.

Benefits:

• Self-priming function ensures easy startup and reliability, eliminating the need for manual priming.
• Durable construction with corrosion-resistant materials, extending the lifespan of the pump in harsh environments.
• Ability to run dry without damage, providing additional reliability during use.
• Efficient pressure control with automatic cut-in and cut-out features, optimizing water flow and pump performance.
• Compact and lightweight design for easy installation in various systems.
• Energy-efficient operation with minimal power consumption, ideal for off-grid or mobile applications.
• Three-year warranty, ensuring long-term reliability and peace of mind.
