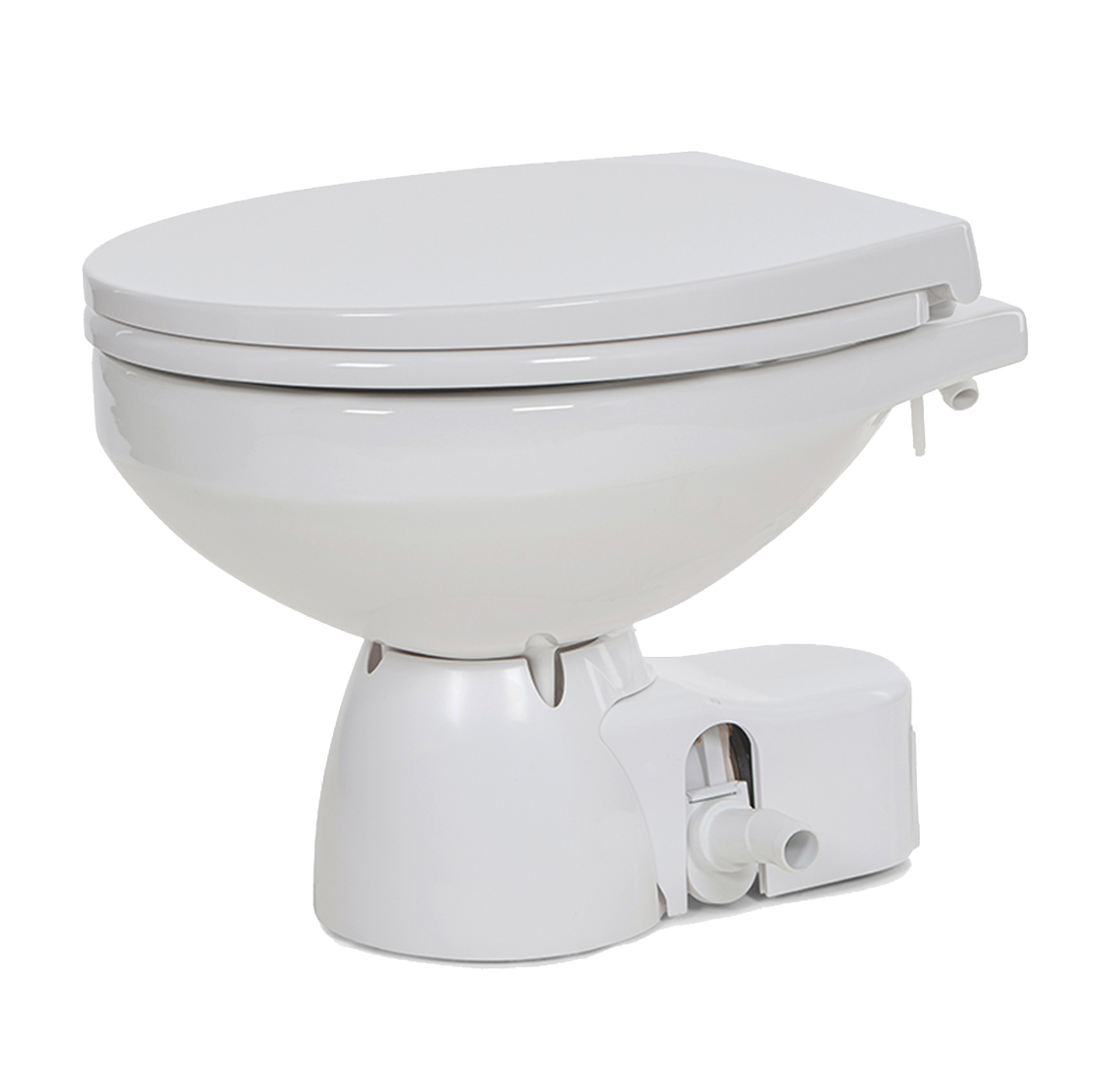

Jabsco 38245-4194 - Quiet Flush E2 Regular Electric Toilet 24V with Flush Water Pump, Soft Closing

Jabsco 38245-4194 - Quiet Flush E2 Regular Electric Toilet 24V with Flush Water Pump, Soft Closing

Introducing the Jabsco 38245-4194 Quiet Flush Electric Toilet, designed to provide ease of installation, service, and operation. This toilet offers exceptional performance while maintaining a low noise level during operation.

• Easy Installation: The rotating base allows flexible installation options, with the pump's discharge directed to the left, right, or rear.
• Simple Maintenance: The quick-release system enables easy access to the macerator pump and discharge hose, no tools required.
• Effortless Operation: Featuring a sleek touch sensor panel, choose from three settings: Eco Flush, Full Flush, or Empty Pump.
• Low Noise: The Quiet Flush system operates with minimal noise, ensuring a comfortable environment.
• Water Efficiency: The toilet uses 1-2 liters of water per flush, making it both efficient and environmentally friendly.
• Seawater-Compatible Pump: A self-priming PAR-MAX 3 pump (19mm hose connections) flushes the toilet bowl with seawater.
• Included Components: Comes with a white 1.8-meter long 19mm hose to connect the flush water pump to the toilet’s water inlet.
• Discharge Pump: A powerful centrifugal pump with a 25mm hose connection breaks up and evacuates waste efficiently.
• Hygienic Bowl: Features a pure white vitreous china bowl in Comfort size for easy cleaning and durability.
• Soft-Close Seat: The composite seat and cover offer a soft-closing function for enhanced comfort.
• Compatibility: The base’s fixing points align with previous Jabsco Quiet Flush and Standard Marine toilets since 2001.
• Additional Accessories: Includes a 25mm waste water pump outlet piece (straight and 90° elbow), hose adapter for 38mm waste hose, strainer, and control panel with a black box.
• Power Requirements: Requires a max amperage of 10A with a 13A fuse size.
• Dimensions: Height: 36.2 cm, Width: 36.6 cm, Depth: 47.3 cm.
• Alternative Models: This product serves as an alternative to Jabsco 37245-1094, 37245-4094, and 37245-4194 models.

Here are some additional details about the Jabsco 38245-4194 Electric Toilet.

• Order Number: 00322161
• Supplier Code: 38245-4194
• Barcode: 671880641487
• Voltage: 24 Volts
• Seat and Lid: Plastic with a soft-closing function
• Service Mode: Touch 2-button system
• Rinse Pump Capacity: Minimum of 11 liters per minute
• Connections: 19mm inlet hose, 25mm drain hose
• Water Consumption: 1 liter per complete rinse
• Product Weight: 17.5 kg
• Color: White
• Material: Porcelain
• Head Height: 1.2 meters
