SKU:
TN 00320397
€ 81,96
1-2 weeks delivery time
-
+
The Jabsco 37121-0010 pressure switch is designed for use with Jabsco 36800 water pressure pumps, providing optimal performance at 40 PSI. This switch ensures proper water pressure regulation and includes servicing instructions for the Universal Switch Replacement Kit. Users must ensure the system is powered off before servicing, and proper screw tightening is critical to avoid damage. Unauthorized adjustments to the pressure adjustment screw will void the warranty.
- Description
- Ask a Question
-

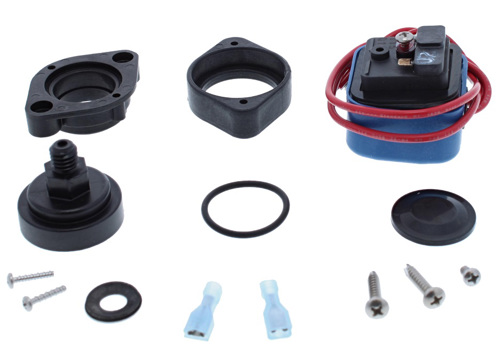

Jabsco 37121-0010 - Pressure Switch for Pressure Pumps 40 Psi HP
The Jabsco 37121-0010 pressure switch is designed for use with Jabsco 36800 water pressure pumps. Rated at 40 PSI, this switch ensures optimal performance for your water pressure system.
- Order number: 00320397
- Supplier code: 37121-0010
- Barcode: 671880032971
Servicing instructions for the Universal Switch Replacement Kit:
- Before beginning any service, ensure the power is turned off.
- Open an outlet to relieve the pressure in the system. If the pump is below the supply tank, close the supply tank valve to prevent water leakage during service.
- Disconnect the wires from the terminals and remove the old pressure switch from the pump.
- Determine the pump model and vintage using the provided diagram.
- Assemble the parts for your model in sequence, ensuring proper tightness of screws. Tighten intermediate screws to 15 inch-pounds of torque and switch screws to 7 inch-pounds of torque.
- Replace the terminals with the new terminals supplied in the kit.
Important Note: The pre-mounted screw on the face of the switch housing is the pressure adjustment screw. This switch is factory pre-set and should not be adjusted. Unauthorized adjustments can cause damage or injury and will void the warranty.
-
