€ 227,08
1-2 weeks delivery time
-
+

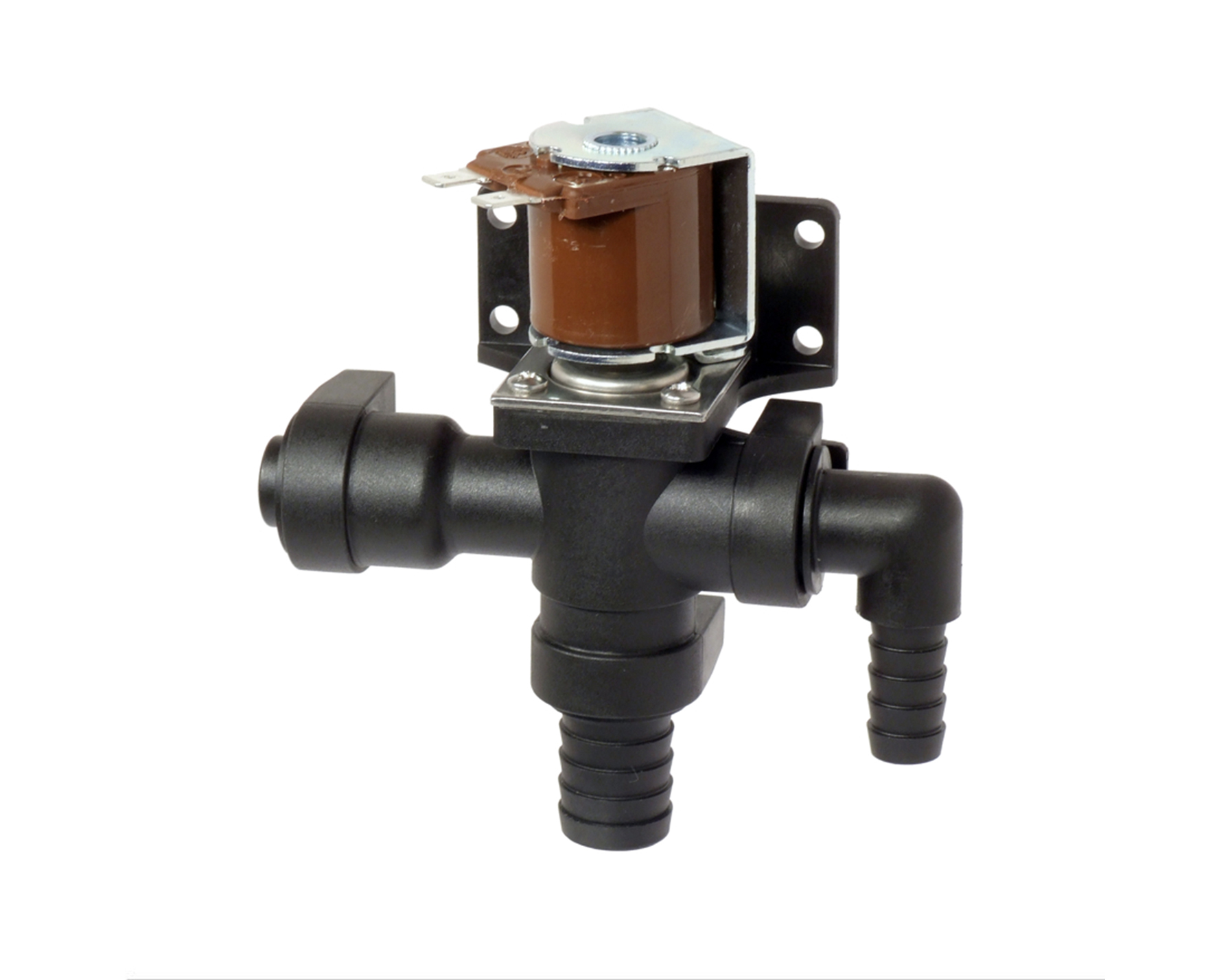

The Jabsco 37038-2024 Solenoid is a 24V version of the solenoid and anti-siphon valve designed for Jabsco Quiet Flush fresh water toilets. It features a double check valve, mounting bracket, and JG Speed fit connections. The valve is suitable for installation above or below the toilet and replaces the Jabsco 37038-1024 model.
- Description
- Ask a Question
-
Jabsco 37038-2024 - Solenoid for Quiet Flush Fresh Water Toilets (24V)
This 24V solenoid and anti-siphon valve, model 37038-2024, is intended for use with Jabsco Quiet Flush fresh water toilets, including models 38045-3094 and 38045-4194. It features an inline, normally closed design with 15mm JG Speed fit connections, hose tail inlet and outlet, and includes a mounting bracket. The valve incorporates a double check valve to prevent potable water contamination and an internal inlet filter. It can be installed in any orientation, either above or below the toilet.
- Application: Jabsco Fresh Water Flush Quiet Flush Toilets
- Dimensions: Height with bracket 64mm (2.5"), Length with bracket 71mm (2.8"), Width 114mm (4.5")
- Voltage: 24V DC
- Valve Design: Siphon Break Valve
- Inlet/Outlet Port Sizes: 15mm JG Speed fit, 13mm hose inlet, 19mm hose outlet
- Distance between mounting holes: 19mm x 54mm (3/4" x 2.1")
- Model: 37038-2024
- Replaces: Jabsco 37038-1024
- Order number: 00322148
- Supplier code: 37038-2024
- Barcode: 671880637503
-
