SKU:
TN 00320196
€ 227,08
1-2 weeks delivery time
-
+
The Jabsco 37038-2012 Solenoid is a 12V solenoid and anti-siphon valve designed for Jabsco Quiet Flush fresh water toilets. It includes a double check valve for contamination protection, a mounting bracket, and JG Speed fit connections. It can be mounted in any orientation and replaces the previous Jabsco 37038-1012 model.
- Description
- Ask a Question
-
Jabsco 37038-2012 - Solenoid for Quiet Flush Fresh Water Toilets (12V)

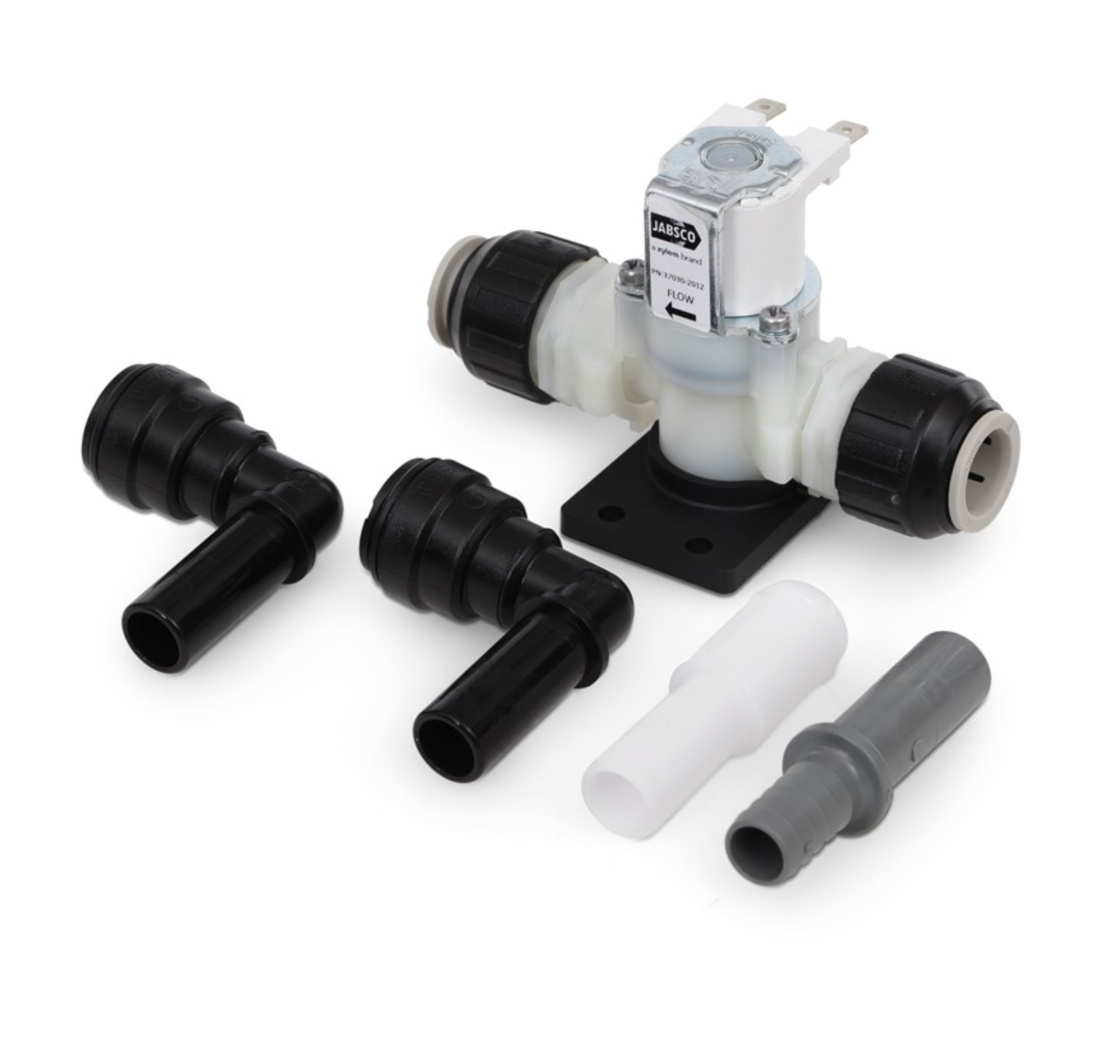

The Jabsco 37038-2012 is a 12V solenoid and anti-siphon valve designed specifically for Jabsco Quiet Flush fresh water toilets models 38045-3092 and 38045-4192. This inline, normally closed valve includes 15mm JG Speed fit connections, hose tail inlet and outlet, and a mounting bracket. It features a double check valve for contamination protection and an internal inlet filter. Suitable for mounting in any orientation above or below the toilet.
- Application: Jabsco Fresh Water Flush Quiet Flush Toilets
- Dimensions: Height with bracket 64mm (2.5"), Length with bracket 71mm (2.8"), Width 114mm (4.5")
- Voltage: 12V DC
- Valve Design: Siphon Break Valve
- Inlet/Outlet Port Sizes: 15mm JG Speed fit, 13mm hose inlet, 19mm hose outlet
- Distance between mounting holes: 19mm x 54mm (3/4" x 2.1")
- Model: 37038-2012
- Replaces: Jabsco 37038-1012
- Order number: 00320196
- Supplier code: 37038-2012
- Barcode: 671880637497
-
