Jabsco 32305-5012-3A - Hotshot 3 Pressure-Controlled Self-Priming Washdown Diaphragm Pump 12V

Jabsco 32305-5012-3A - Hotshot 3 Pressure-Controlled Self-Priming Washdown Diaphragm Pump 12V

The Jabsco 32305-5012-3A Hotshot 3 Pressure-Controlled Self-Priming Washdown Diaphragm Pump is designed for demanding washdown applications in both marine and industrial environments. With a maximum pressure of 3.4 bar (50 psi) and an output of 11 liters per minute (2.9 gallons per minute), this pump is ideal for high-flow washdowns. It is equipped with a self-priming diaphragm design that can lift water up to 3 meters (10 feet) vertically and operates smoothly even in dry conditions without damage. The pump features corrosion-resistant materials suitable for saltwater, ensuring long-term durability in harsh marine environments. It also includes a Jabsco strainer, hose barb fittings, a 3/4" garden hose thread fitting, and a convenient trigger nozzle. The sealed motor offers added protection against moisture and ensures the pump remains reliable over time. This 12V DC pump is designed for high efficiency and ease of use in various applications.

Key Features:

• Pressure-controlled self-priming washdown diaphragm pump for versatile applications
• Maximum pressure of 3.4 bar (50 psi) with a flow rate of 11 liters/min (2.9 gallons/min)
• Self-priming up to 3 meters (10 feet) vertical lift, ideal for use in challenging conditions
• Corrosion-resistant design, perfect for saltwater washdown tasks
• Dry-running capability ensures reliable operation without causing damage to the pump
• Includes Jabsco strainer, 1/2" and 3/4" hose barb port fittings, and 3/4" US Garden Hose Thread (GHT) fitting
• Convenient trigger nozzle included for easy washdown use
• Sealed motor protects against moisture, extending the pump’s lifespan
• Fuse size: 15 amps for enhanced safety

Specifications:

• Part Number: 32305-5012-3A
• Voltage: 12V DC
• Maximum Pressure: 3.4 bar (50 psi)
• Flow Rate: 11 liters/min (2.9 gallons/min) open flow
• Fuse Size: 15 amps (not included)
• Dimensions: 231mm (L) x 108mm (W) x 106mm (H)
• Self-Priming Lift: Up to 3 meters (10 feet) vertical
• Connections: 13mm (1/2") and 19mm (3/4") bore hose, 3/4" US Garden Hose Thread (GHT)
• Weight: 1.5 kg (Approx. 2.0 kg packed)
• Corrosion-resistant materials for marine environments
• Motor: Sealed for added protection against moisture

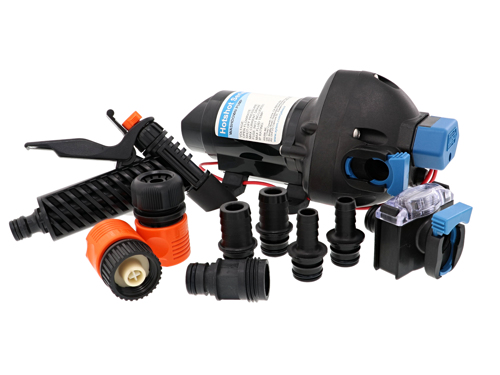

• Includes: Jabsco strainer, port fittings (1/2" and 3/4"), and trigger nozzle
• Operating Temperature Range: 0°C to 50°C (32°F to 122°F)
• Material: Glass-filled polypropylene body and Viton valves for chemical resistance
• Max. Viscosity: Up to 250 cP
• Continuous Duty: Suitable for 2.8 bar (40 psi) head at 55°C ambient temperature

Compatibility and Application:

• Perfect for marine environments, boats, and RVs requiring reliable washdown pumping
• Can be used with saltwater, ideal for cleaning tasks in coastal or marine locations
• Compatible with 13mm (1/2") and 19mm (3/4") bore hose or 3/4" US garden hose thread (GHT)
• Versatile design suitable for industrial, commercial, and recreational washdown tasks

Benefits:

• Corrosion-resistant construction ensures durability and reliability in harsh conditions
• Self-priming function up to 3 meters (10 feet) vertical lift for flexible installation and use
• Dry-running capability prevents damage even when the pump is not submerged in water
• Convenient trigger nozzle for easy washdown without additional tools
• Quiet and efficient operation with low noise levels
• Sealed motor adds protection against moisture, reducing wear and tear on the pump
• Includes essential components for easy installation and ready-to-use functionality
• Energy-efficient design reduces power consumption, extending battery life in mobile applications
