Jabsco 31911-0007 - Quick Release Connector

Jabsco 31911-0007 - Quick Release Connector

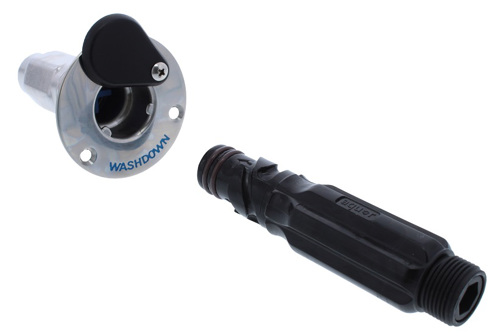

The Jabsco 31911-0007 Quick Release Connector is a robust, high-performance fitting crafted from AISI316 Stainless Steel, designed for marine and industrial washdown applications. This connector features a flush mount design, allowing for a sleek and discreet installation. With a positive lock bayonet connector, it ensures secure connections that can connect and disconnect under full pressure without compromising performance. The deck fitting has a 13mm (1/2" BSP) female connection, and the bayonet connector has a 19mm (3/4" BSP) male connection. The connector’s three locking prongs ensure a reliable, secure connection that prevents accidental disengagement even in high-pressure environments. Its compact dimensions, 73mm diameter and 95mm height, make it easy to install without taking up excessive space, while its corrosion-resistant material ensures durability and long service life. Designed for use with HoseCoil Washdown hoses, the Jabsco 31911-0007 is the perfect solution for quick and reliable hose connections in demanding settings such as boats, ships, and industrial applications.

Key Features:

• Crafted from high-grade AISI316 Stainless Steel for superior corrosion resistance and durability
• Flush mount design for a discreet, compact installation that fits into tight spaces
• Positive lock bayonet connector ensures secure connections under full pressure
• Connects and disconnects easily, making it ideal for washdown systems and quick hose connections
• Includes three locking prongs for enhanced connection security and stability
• Compatible with HoseCoil Washdown hoses for efficient water or chemical transfer
• Compact dimensions with a 73mm (2-7/8") diameter and 83mm (3-1/4") length for easy integration

Specifications:

• Part Number: 31911-0007
• Material: Stainless Steel 316
• Deck Fitting Connection: 13mm (1/2" BSP) Female
• Bayonet Connector: 19mm (3/4" BSP) Male
• Dimensions: 73mm (2-7/8") diameter, 95mm height
• Length: 83mm (3-1/4")
• Weight: 0.54 Kg (Approx. 0.79 Kg packed)
• Pressure Rating: 10 bar (145 psi) maximum working pressure
• Temperature Range: -10ºC to 60ºC (14ºF to 140ºF) operating temperature
• Flow Rate: 200 liters per minute (52.8 gallons per minute) maximum
• Locking Mechanism: Three prongs for secure, reliable connection
• Installation Type: Flush mount, designed for easy, secure integration into washdown systems

Applications:

• Ideal for marine washdown systems where quick, reliable connections are required
• Perfect for boats, ships, and yachts that need efficient hose management
• Suitable for industrial washdown applications, providing secure water or chemical transfers
• Can be used in environments where high-pressure connections are necessary
• Perfect for installation on decks or other areas requiring easy access to water hoses

Benefits:

• Durable, corrosion-resistant stainless steel ensures a long lifespan even in harsh environments
• Flush mount design ensures a clean, neat installation with minimal footprint
• Positive lock mechanism prevents accidental disconnection under pressure, ensuring safe operation
• Quick and efficient hose connections, saving time in high-pressure washdown scenarios
• Compact size allows installation in tight spaces without sacrificing functionality
• Perfect for use with HoseCoil Washdown hoses, providing a complete and reliable solution for fluid transfer
• Easy to maintain and clean, enhancing the efficiency of your washdown system
