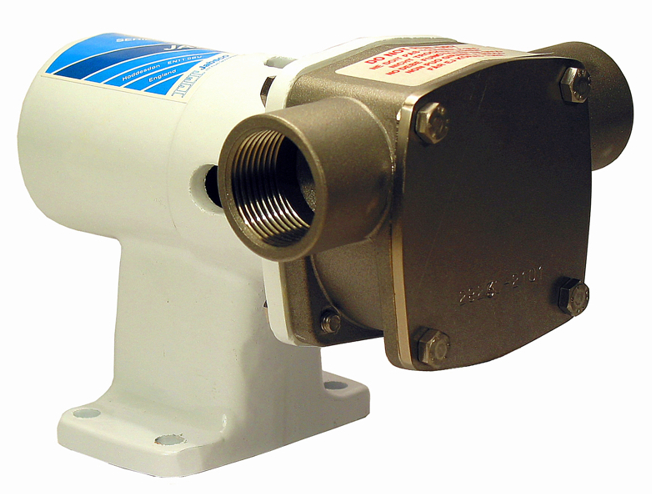

Jabsco 28330-2101 - Industrial Flexible Impeller Pedestal Pump

Jabsco 28330-2101 - Industrial Flexible Impeller Pedestal Pump

The Jabsco 28330-2101 Industrial Flexible Impeller Pedestal Pump is a versatile, high-performance pump designed to handle demanding industrial applications, such as abrasive suspensions, viscous fluids, and foaming solutions. Constructed with AISI 316 stainless steel wetted parts and a neoprene impeller, it offers superior corrosion and chemical resistance. With its ability to handle soft and hard solids and thick, viscous liquids up to 50,000 cP, it is ideal for applications including transfer, filling, recirculating, mixing, injection, and sampling duties. The pump’s robust design ensures long-lasting performance, even under the most challenging conditions.

Key Features:

• AISI 316 stainless steel wetted parts for exceptional corrosion and chemical resistance, suitable for aggressive fluids and harsh environments.
• Neoprene impeller and nitrile seal trim for enhanced durability and reliability, even with abrasive or viscous liquids.
• 1" BSP ports for easy connection and installation in a variety of industrial systems.
• Self-priming up to 5 meters, reducing the need for additional priming equipment.
• Handles both soft and hard solids, making it suitable for a wide range of materials, including slurries and abrasives.
• Designed for handling viscosities up to 50,000 cP, ideal for thick adhesives, pastes, and slurries.
• Long-life mechanical shaft seal reduces the risk of leaks and minimizes maintenance downtime.
• Maximum output of 72 liters/minute at 3m head @ 1500rpm with a maximum differential pressure of 2.1 bar, ensuring powerful and efficient fluid transfer.
• Various impeller compounds and seal materials available to meet the specific needs of different industries and applications.
• Optional motorized versions available; please contact us for additional information and customization options.

Specifications:

• Connections: 1" BSP ports for easy system integration.
• Dimensions: Approx. 214mm long, 120mm wide, 121mm high, with a compact design for space-limited installations.
• Output: Up to 72 liters/minute at 3m head @ 1500rpm, suitable for various flow requirements.
• Maximum Differential Pressure: 2.1 bar, providing a high level of pressure handling capability for demanding tasks.
• Self-Priming: Capable of self-priming up to 5 meters, ensuring fast and reliable operation even in difficult setups.
• Viscosity Handling: Effective with viscosities up to 50,000 cP, making it ideal for thick, adhesive, or slurry materials.
• Materials: AISI 316 stainless steel wetted parts, neoprene impeller, and nitrile seal trim for durability and resistance to wear.
• Motorized Options: For motorized versions, please contact us for specifications and custom solutions.
• Weight: Actual weight 4.10 kg (approx. 4.60 kg packed), making it a manageable size for easy handling and installation.
• Temperature Range: Capable of operating in a wide temperature range, ideal for various industrial conditions.
• Max Fluid Temperature: Typically up to 90°C (194°F), but options are available for higher temperatures upon request.

Applications:

• Abrasive suspensions and slurries, ideal for handling hard solids and gritty materials.
• Soaps and foaming solutions, perfect for maintaining flow consistency in soap production and cleaning processes.
• Inks, dyes, and paints, providing safe transfer of pigments and viscous liquid formulations.
• Viscous adhesives, ensuring reliable transfer and mixing of thick bonding agents.
• Transfer, filling, emptying, recirculating, mixing, injection, or sampling duties in industrial systems.
• Ideal for applications in industries such as chemical processing, textiles, printing, and food processing.

Benefits:

• Chemical and corrosion-resistant materials ensure durability and performance in challenging environments.
• Handles both soft and hard solids, providing flexibility for a range of industrial materials.
• Self-priming function up to 5 meters, making installation and operation simpler and more efficient.
• Long-lasting mechanical shaft seal reduces maintenance requirements and downtime, improving overall productivity.
• Maximized output of 72 liters/minute at 3m head provides fast and efficient fluid transfer, optimizing system performance.
• Capable of handling high-viscosity fluids up to 50,000 cP, making it perfect for challenging fluid handling tasks.
• Customizable with a range of impeller compounds and seal materials to suit specific fluid characteristics and industry needs.
• Optional motorized solutions available to provide tailored solutions for various system requirements.
