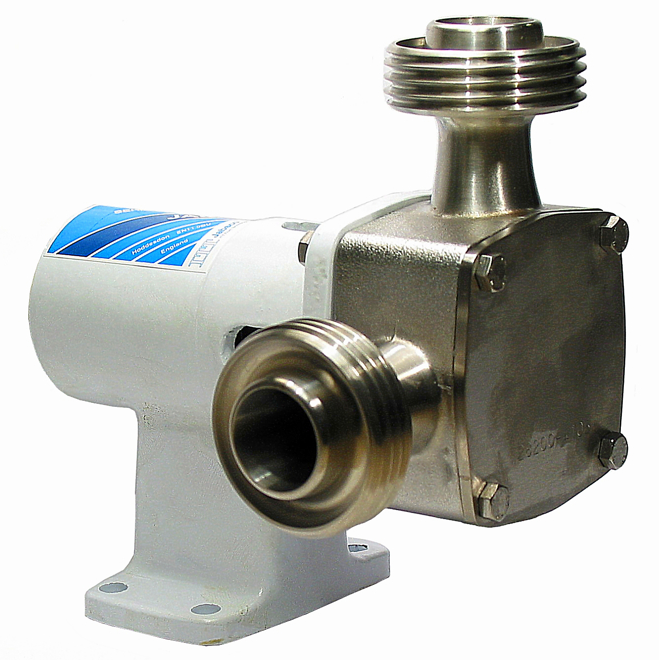

Jabsco 28200-4102 - Pureflo Hygienic Self-Priming Flexible Impeller Pedestal Pump

Jabsco 28200-4102 - Pureflo Hygienic Self-Priming Flexible Impeller Pedestal Pump

The Jabsco 28200-4102 Pureflo Hygienic Self-Priming Flexible Impeller Pedestal Pump is a top-tier solution designed for hygienic fluid transfer in industries such as food processing, dairy, pharmaceuticals, cosmetics, and beverages. Made with AISI 316 stainless steel wetted parts and a food-grade EPDM impeller, it ensures a hygienic and durable solution for demanding applications. This pump provides high efficiency with an output of up to 33 liters per minute at a 3-meter head and is capable of handling viscosities up to 50,000 cP. It is self-priming up to 4.5 meters, which makes it reliable for various operations such as transfer, filling, recirculating, mixing, injection, and sampling. It is engineered for easy cleaning, with a Clean-in-Place (CIP) design and a long-life mechanical shaft seal that reduces maintenance time.

Key Features:

• Self-priming up to 4.5 meters, ensuring consistent operation even with low fluid levels.
• Food-grade EPDM impeller and AISI 316 stainless steel wetted parts for hygienic and durable performance.
• Handles soft and hard solids and fluids with viscosities up to 50,000 cP, ideal for a wide range of applications.
• Output capacity of up to 33 liters per minute at a 3-meter head at 1500 rpm.
• Maximum differential pressure of 3.5 bar for high-efficiency operation.
• Clean-in-place (CIP) or easy strip-to-clean design for fast and effective cleaning.
• Long-life mechanical shaft seal minimizes maintenance and extends operational life.
• Compatible with IDF, SMS, DIN, 3A, and clamp port types for versatility in different system configurations.
• Available in a variety of impeller compounds to handle different types of fluids and applications.

Specifications:

• Model: Jabsco 28200-4102
• Material: AISI 316 stainless steel wetted parts, food-grade EPDM impeller
• Port Connections: 1" RJT (BS1864) ports
• Dimensions: Length: 176mm, Width: 89mm, Height: 147mm (approx.)
• Output: Up to 33 liters/minute at 3-meter head @ 1500 rpm
• Maximum Differential Pressure: 3.5 bar (50.75 psi)
• Self-Priming: Up to 4.5 meters (14.8 feet)
• Viscosity Handling: Up to 50,000 cP
• Cleaning Method: Clean-in-place (CIP) or strip-to-clean
• Mechanical Shaft Seal: Long-life seal for enhanced durability
• Port Types Available: IDF, SMS, DIN, 3A, and clamp ports
• Weight: 2.92 kg (approx. 3.42 kg packed)
• Temperature Range: -10°C to 110°C (14°F to 230°F)
• Maximum Operating Pressure: 3.5 bar (50.75 psi)
• Power Consumption: 150W (at 1500 rpm)
• Noise Level: Less than 70 dB(A) for quieter operation
• Motorized Options: Available upon request (please contact us for more details)

Applications:

• Food and beverage processing
• Dairy industry
• Cosmetics and pharmaceutical manufacturing
• Liquid transfer, filling, and emptying duties
• Recirculating and mixing operations
• Injection and sampling processes in hygienic environments

For motorized options or more information on other impeller compounds and configurations, please contact us. The Jabsco 28200-4102 pump is designed to offer long-lasting, efficient, and reliable performance for a wide range of hygienic fluid handling applications.
