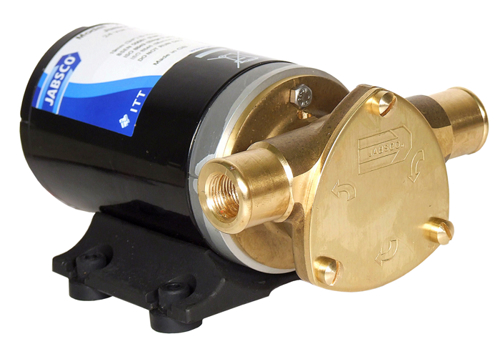

Jabsco 23680-4103 - Water Puppy Self-Priming Pump 24V

Jabsco 23680-4103 - Water Puppy Self-Priming Pump 24V

The Jabsco 23680-4103 Water Puppy Self-Priming Pump is a medium-duty, continuously rated pump, engineered to efficiently handle bilge and deckwash tasks. Capable of delivering up to 32 litres per minute (6.5 gallons per minute), this pump is ideal for marine environments requiring reliable water transfer. The pump’s self-priming ability, capable of lifting water up to 1.2 meters (4 feet), allows for easy operation even in challenging conditions. Built with a durable bronze body and a stainless steel shaft, it is designed for long-lasting performance in tough marine environments. With a simple and serviceable design, it features minimal wearing parts, ensuring easy maintenance and extended service life. The pump can generate pressures up to 0.4 bar (6 psi), providing optimal performance. The flexible installation options allow compatibility with 25mm (1”) bore hoses or ½” BSP hose adapters. Ideal for general water transfer, bilge pumping, and deck washing, the Jabsco Water Puppy is an essential component for any vessel.

Key Features:

• Self-priming capability up to 1.2 meters vertical lift for reliable operation.
• Medium-duty, continuously rated for optimal bilge and deckwash performance.
• Delivers up to 32 litres per minute (6.5 gallons per minute) output for efficient water removal.
• Generates pressures up to 0.4 bar (6 psi), suitable for a wide range of applications.
• Durable bronze body and stainless steel shaft for corrosion resistance and longevity.
• Simple, serviceable design with minimal wearing parts for easy maintenance.
• Flexible installation options with compatibility for 25mm (1”) bore hoses or ½” BSP hose adapters.
• Fuse size: 10 amps for safe operation.
• Ideal for marine, recreational vehicles, and general water transfer needs.
• Can handle fresh water and seawater applications.
• Quiet operation, reducing noise during use.
• Compact and lightweight for easy installation in confined spaces.

Specifications:

• Model: Jabsco 23680-4103
• Output: 32 litres/minute (6.5 gallons/minute)
• Maximum Pressure: 0.4 bar (6 psi)
• Self-Priming: Up to 1.2 meters (4 feet) vertical lift
• Dimensions: 195mm long, 120mm wide, 75mm high
• Connections: For 25mm (1”) bore hose or ½” BSP hose adapters
• Fuse Size: 10 amp
• Material: Bronze body, stainless steel shaft
• Shipping Weight: 3.69 kg
• Packaged Dimensions: L: 22.00 x H: 9.00 x W: 13.00 cm
• Operating Voltage: 24V DC
• Power Consumption: 240 Watts
• Maximum Current: 10 Amps
• Motor Type: 24V DC permanent magnet motor
• Impeller Type: Flexible impeller, fully serviceable
• Pump Type: Centrifugal self-priming
• Flow Rate: Constant flow rate under continuous duty
• Mounting Orientation: Can be mounted in any orientation for flexible installation
• Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
• Voltage Tolerance: ±10% of rated voltage
• Noise Level: Low operational noise
• Warranty: 1-year manufacturer warranty

Applications:

• Bilge pumping for boats, yachts, and other marine vessels.
• Deck wash systems for boats and watercraft.
• Water transfer and general pumping applications in marine and RV industries.
• Emergency water removal in confined spaces and hard-to-reach areas.
• Ideal for use in freshwater and seawater environments.

Maintenance Tips:

• Regularly inspect the pump for blockages or debris, particularly in bilge applications where debris is common.
• Check the impeller periodically for signs of wear and replace as necessary to maintain optimal pumping efficiency.
• Lubricate the pump’s moving parts as recommended in the user manual to ensure smooth operation.
• Test the pump's self-priming function regularly to confirm it is operating correctly.
• Ensure proper voltage supply to the pump to avoid overloads and potential damage to the motor.
• Clean the pump regularly to avoid the build-up of saltwater or debris.
