SKU:
TN 00320136
€ 525,38
1-2 weeks delivery time
-
+
The Jabsco 23670-4003 Junior Puppy is a compact, self-priming 12V impeller pump designed for bilge and deck wash tasks. With a flow rate of 15 liters per minute and 3/8" BSP ports, it features a durable bronze body and is compliant with ISO marine standards. It handles suction heights up to 2.5 meters and supports 19mm hose connections, drawing 13A with a 15A fuse.
- Description
- Ask a Question
-

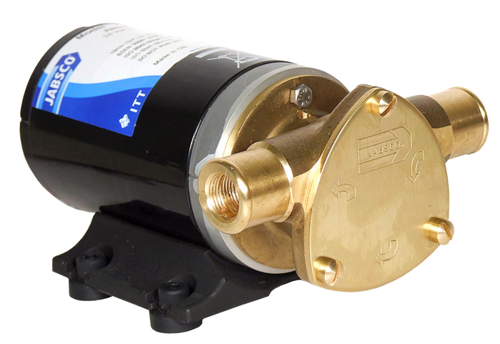

Jabsco 23670-4003 - Bilge and Deck Wash Impeller Pump Junior Puppy 12V 15 l/min 3/8"
The Jabsco Junior Puppy is a dependable, self-priming pump featuring a durable bronze body, designed for bilge and deck wash applications. It offers efficient performance with a moderate flow rate, suitable for smaller water transfer needs.
- Maximum flow rate: 15 liters per minute at zero head
- Port size: 3/8" BSP female (3/4" outer diameter)
- Replacement impeller part number: JAB-9200-0023B
- Approved to ISO8846 marine ignition and ISO8849 marine bilge pump standards
- Flow rates at various heads: 930 LPH (245 US GPH) at 5m, 810 LPH (213 US GPH) at 10m, 690 LPH (182 US GPH) at 15m
- Electrical fuse rating: 15A
- Dimensions: Height 90mm (3.54"), Length 180mm (7.1"), Width 110mm (4.3")
- Series: Junior Puppy
- Voltage: 12V DC
- Current draw: 13A
- Self-priming capability up to 2.5 meters (8.2 feet)
- Inlet and outlet designed for 19mm (3/4") ID hose and 3/8" BSP female thread
- Hose size compatibility: 19mm / 3/4"
- Not suitable for vertical mounting where impeller housing is above the motor
- Order number: 00320136, Supplier code: 23670-4003, Barcode: 671880551342
- General specifications: Voltage 12V, Yield 15 LPM, Suction height 1.5 m, Connections 2 x 3/8" internal / 25mm hose
-
