SKU:
TN 00320133
€ 678,11
1-2 weeks delivery time
-
+
The Jabsco 23610-3103 Maxi Puppy 24V pump offers similar performance to the 12V model, with a bronze body and stainless steel shaft, delivering up to 45 L/min at 24V, suitable for bilge and deck wash applications but should not be mounted vertically.
- Description
- Ask a Question
-

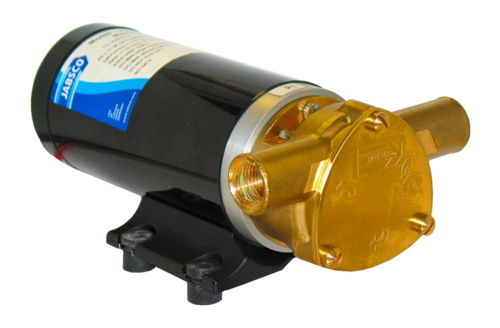

Jabsco 23610-3103 - Bilge and Deck Wash Impeller Pump Maxi Puppy 24V 45 l/min 1/2"
The Jabsco Maxi Puppy 3000 is a durable, self-priming electric impeller pump designed for bilge and deck wash applications. Featuring a robust bronze body and stainless steel shaft, it ensures long-lasting marine performance. Note that it should not be mounted vertically with the impeller housing above the motor.
- Flow Rate: Up to 45 liters per minute (10 gallons per minute) max; 1800 LPH (475 US GPH) at 10 meters head
- Flow Rates at Different Heads: 2700 LPH (713 US GPH) at 2m; 2280 LPH (602 US GPH) at 6m
- Voltage: 24V DC
- Current Draw: 11 Amps, Fuse 15A
- Self-Priming Capability: Up to 2.4 meters (7.9 feet)
- Dimensions: Height 90mm (3.54"), Length 220mm (8.5"), Width 120mm (4.75")
- Connections: For 25mm (1") ID hose with 1/2" BSP female thread
- Construction: Bronze pump body with stainless steel shaft
- Approvals: ISO8846 marine ignition protection, ISO8849 marine bilge pump standard
- Model Number: 23610-3103
- Replacement Impeller: JAB-7273-0003
- General Info: Order number 00320133, Supplier code 23610-3103, Barcode 671880548632
- Automatic Bilge Pump: No
-
