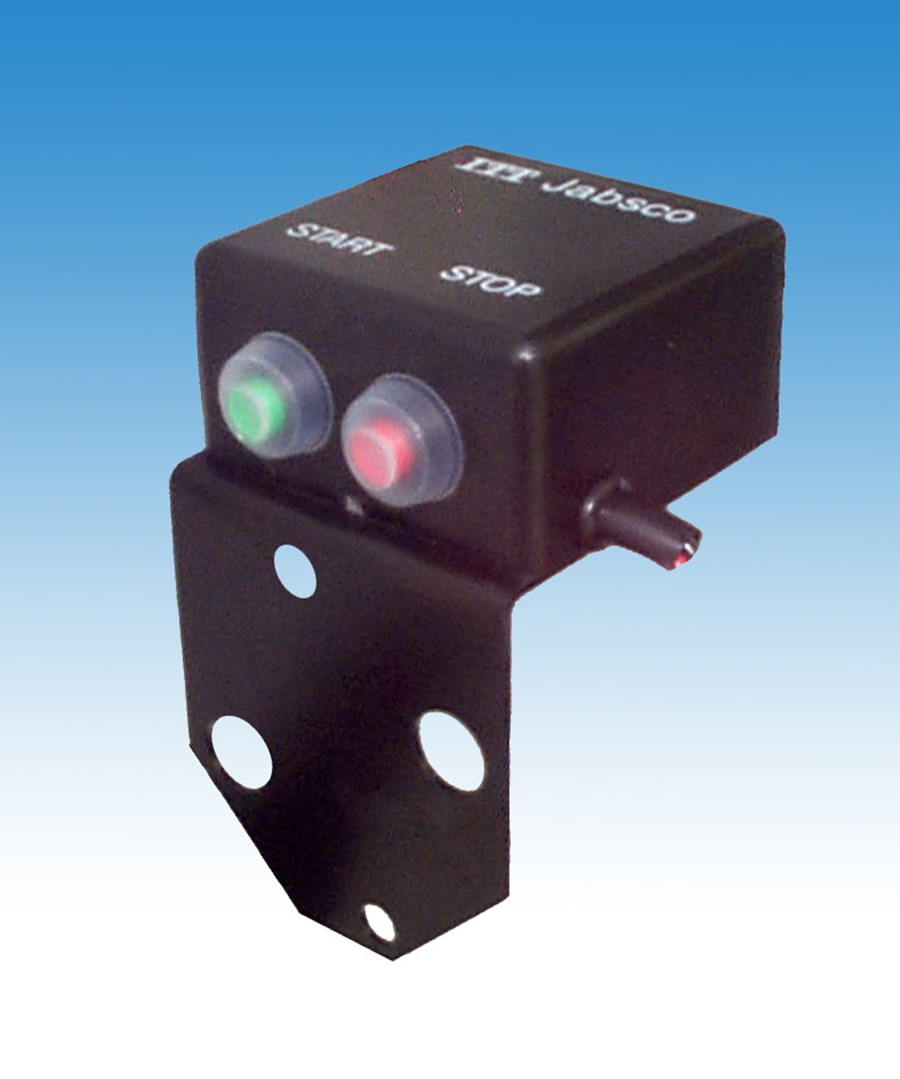

The Jabsco 23528-1024B Auto Shut Controller is a highly reliable 24V device designed to work with the VR100 water pressure system, ensuring smooth operation and optimal performance. It is engineered to automatically shut off the pump once the system reaches the desired pressure level, preventing overuse and pump damage. This compact and robust controller is essential for maintaining stable water pressure, offering a hassle-free experience in marine, RV, and other high-demand applications.

Key Features:

• Automatic shut-off function to prevent pump damage and reduce wear.
• Designed specifically for use with the VR100 water pressure system.
• 24V DC operation, ideal for integration with most water systems requiring low voltage control.
• Compact size, easy to install, and saves space in your water pressure system setup.
• Reliable performance in both marine and recreational vehicle systems, ensuring consistent pressure and protection for your pump.
• Reduces energy consumption by turning off the pump when the system reaches optimal pressure.
• Durable construction with high-quality materials for long-lasting use in demanding environments.

Specifications:

• Model: Jabsco 23528-1024B
• Voltage: 24V DC
• Compatibility: For VR100 water pressure system
• Dimensions: L: 10.00 cm x H: 10.00 cm x W: 10.00 cm
• Weight: 0.90 kg (approx. 1.20 kg packed)
• Packaging Dimensions: L: 10.00 cm x H: 10.00 cm x W: 10.00 cm
• Material: High-strength, corrosion-resistant plastic and metal components
• Working Temperature Range: -10°C to 50°C (14°F to 122°F)
• Max Current: 2A
• Pressure Range: 0 to 80 PSI (0 to 5.5 bar)
• Maximum System Pressure: 80 PSI (5.5 bar)
• Mounting Type: Easy surface mount installation
• Protection: Overload and short circuit protection
• Certifications: CE, RoHS compliant
• Environmental Protection: IP65 rating (dust-tight and protected against water jets)
• Power Consumption: 48W (when operating at 24V)
• Frequency: 50/60 Hz
• Relay Type: SPST (Single Pole Single Throw) for on/off control
• Safety Features: Built-in surge protection to prevent voltage spikes
• Indication: LED indicator lights for status monitoring (power and operation)
• Control Input: 24V DC signal from the water pressure system
• Output: Control output to the VR100 pump
• Warranty: 1-year limited warranty against manufacturing defects

Installation Instructions:

• Install the auto shut controller in line with the VR100 system to monitor and regulate water pressure.
• Ensure the electrical connections match the system’s specifications for a seamless operation.
• Adjust pressure settings to match the required operational levels for your specific application.
• Mount the controller in a dry, safe location near the water pump for easy monitoring and maintenance.
• Perform a system test after installation to ensure the controller activates the shut-off feature at the correct pressure threshold.

Applications:

• Marine water pressure systems to maintain stable water flow and pressure.
• Recreational vehicle (RV) water systems, ensuring proper water pressure and pump protection.
• Home water pressure systems in areas requiring reliable pump control and pressure regulation.
• Portable water systems for outdoor use, ensuring smooth operation and avoiding pump damage.
