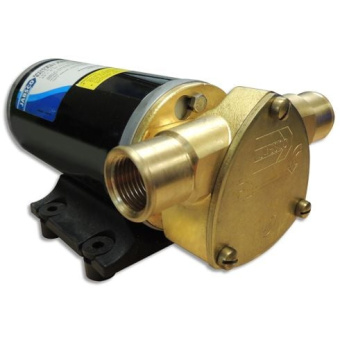

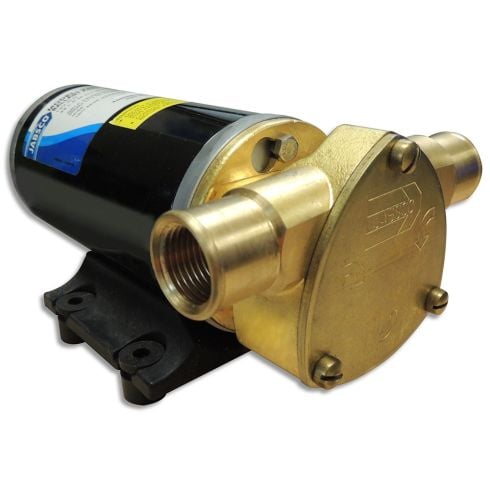

Jabsco 22610-9407 - Ballast King DC Flexible Impeller Pump

Jabsco 22610-9407 - Ballast King DC Flexible Impeller Pump

The Jabsco 22610-9407 Ballast King DC Flexible Impeller Pump is designed for efficient ballast water management in marine, recreational vehicle, and industrial applications. With a robust construction and high-performance capabilities, this pump is ideal for transferring ballast water quickly and reliably. Featuring a maximum output of 57 liters per minute (15 gallons per minute), it ensures smooth water flow with self-priming capabilities up to 4 feet (1.2m). The durable bronze body and stainless steel shaft provide long-lasting corrosion resistance, while the included dry-run impeller offers safe operation even when running without water. This pump is designed for easy installation with 25mm (1”) bore hose connections or ½” NPT internal thread. Equipped with a D5 Deutsch connector for reliable electrical connections, the Jabsco Ballast King pump delivers optimal performance in demanding applications.

Key Features:

• Output capacity of up to 57 liters/minute (15 gallons/minute), ensuring quick ballast water transfer.
• Self-priming to 4 feet (1.2 meters), allowing for smooth operation even in challenging conditions.
• Dry-run impeller included, preventing damage when running without water.
• Durable bronze body and stainless steel shaft for resistance to corrosion and long-term use.
• Compatible with 25mm (1”) bore hose and ½” NPT internal thread for easy installation.
• D5 Deutsch connector for a secure and reliable electrical connection.
• Maximum current: 19 amps, with a fuse size of 25 amps for optimized power management.
• No reversing switch included, providing flexibility for customized installations.
• Designed for marine, RV, and industrial applications where quick and efficient ballast water management is required.

Specifications:

• Model: Jabsco 22610-9407
• Connections: 25mm (1”) bore hose or ½” NPT internal thread
• Dimensions: 204mm long x 120mm wide x 85mm high
• Fuse Size: 25 amps
• Maximum Current: 19 amps
• Output: Up to 57 liters/min (15 gallons/min)
• Dry-run impeller included to prevent damage during dry operation
• Self-priming to 4 feet (1.2m) and non-air-locking for consistent performance
• Material: Bronze body, stainless steel shaft
• Electrical Connector: D5 Deutsch connector for secure connections
• Weight: 4.00 kg (approx. 4.50 kg packed)
• Packaged Dimensions: L: 22.00 x H: 9.00 x W: 22.00 cm
• Ballast Water Transfer Rate: Adds approx. 125 lbs. (56 kg) of ballast water per minute
• Maximum Pressure: 75 psi (5.2 bar) for optimal performance
• Operating Temperature Range: 32°F to 140°F (0°C to 60°C)
• Voltage: 12V DC or 24V DC (depending on system configuration)

Installation Instructions:

• Ensure the pump is mounted in a suitable location, either vertically or horizontally, depending on your system’s requirements.
• Connect the pump to a 25mm (1”) bore hose or ½” NPT internal thread for proper water flow and secure attachment.
• For electrical connections, use the included D5 Deutsch connector to ensure reliable and secure power supply.
• Note that the reversing switch is not included, allowing for custom configurations as required for your specific application.
• Ensure that the pump is primed and ready to operate by verifying the self-priming capability up to 4 feet (1.2m).
• Do not exceed the recommended voltage and current specifications to ensure optimal and safe operation.
• For best performance, ensure that the system is maintained and regularly checked for any wear or damage to the impeller.

How the Ballast King DC Impeller Pump Works:

• The Jabsco 22610-9407 uses a flexible impeller to efficiently transfer ballast water, providing a fast and reliable solution for water management in marine and recreational vehicles.
• The dry-run impeller allows for safe operation when the pump is running without water, preventing damage to internal components.
• Once activated, the pump transfers ballast water at a rate of up to 57 liters/minute (15 gallons/min), quickly adding ballast to the system.
• The self-priming feature ensures that the pump can function even in situations where air or vapor may impede normal operation.
• The bronze body and stainless steel shaft ensure corrosion resistance, providing durability and longevity in harsh environments.
