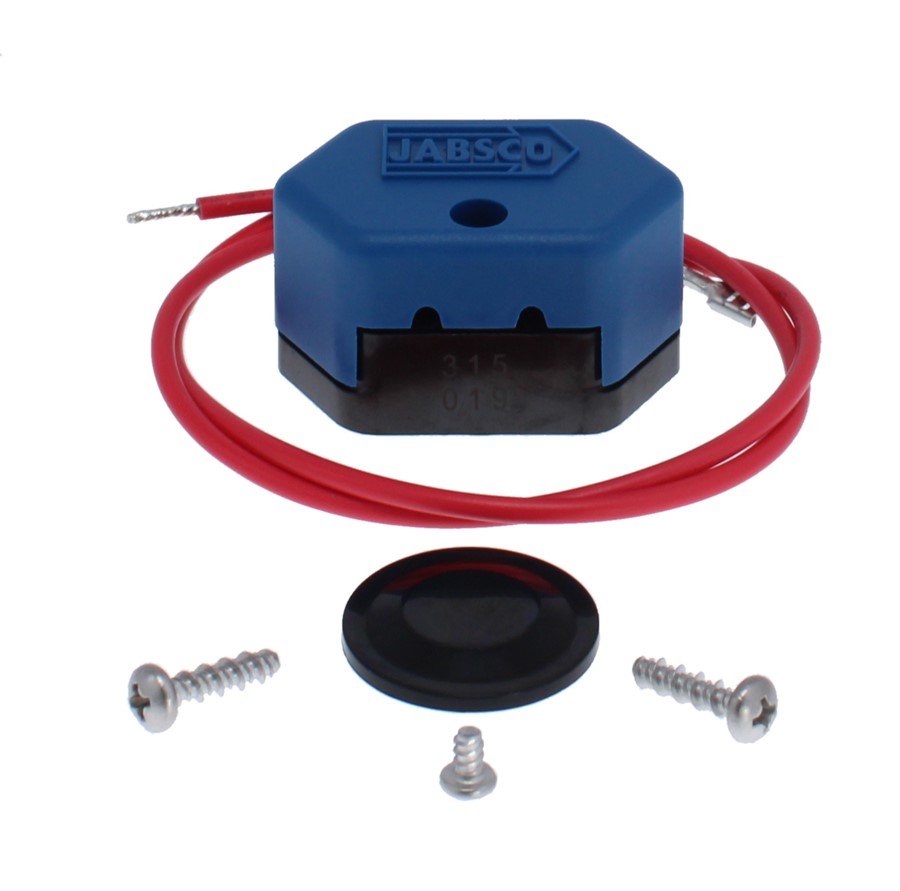

Jabsco 18916-1070 - Pressure Switch - 70PSI

Jabsco 18916-1070 - Pressure Switch - 70 PSI

The Jabsco 18916-1070 Pressure Switch is designed for precise control in water pressure systems, ensuring reliable pump operation. With a 70 PSI activation pressure, this switch automatically turns the pump on or off as needed, reducing the risk of pump cycling and ensuring consistent water pressure. It’s ideal for a variety of applications including marine, RV, and residential water systems, providing smooth and stable water flow. Built for durability, the pressure switch is engineered to withstand the demands of regular use, delivering reliable performance for both residential and marine installations.

Key Features:

• Activates the water pump at 70 PSI for precise control of water pressure.
• Helps reduce pump cycling and extends the lifespan of the pump.
• Compatible with both 12V and 24V DC systems for versatile use in various applications.
• Compact and lightweight design for easy integration into existing water pressure systems.
• Durable construction ensures long-lasting performance in marine, RV, and residential setups.
• Quick and simple installation with standard connections.
• Helps maintain consistent water pressure, preventing fluctuations and system strain.
• Ideal for use in high-demand environments where reliable pressure control is essential.
• Temperature-resistant to handle a variety of environmental conditions.
• Built-in pressure adjustment mechanism for custom pressure settings.
• Prevents dry running by activating the pump only when needed.

Specifications:

• Model: Jabsco 18916-1070
• Pressure Setting: 70 PSI (activation pressure)
• Weight: 0.06 kg (approx. 0.26 kg packed)
• Voltage: 12V and 24V DC compatible
• Operating Pressure Range: 40–70 PSI
• Switch Type: On/Off pressure control for water pumps
• Mounting: Typically mounted near the water pump for efficient operation
• Material: High-quality, durable construction with corrosion-resistant components
• Operating Temperature Range: -10°C to 60°C (14°F to 140°F)
• Max Working Pressure: 75 PSI
• Inlet Port: 1/4" NPT for easy integration with most systems
• Recommended for both freshwater and saltwater applications
• Protects against dry running by ensuring the pump is only activated when the system requires it
• Long-term durability with vibration-resistant design
• Easy-to-adjust pressure setting for customized system operation
• Weatherproof casing to ensure reliable performance in all conditions
• Corrosion-resistant internal components for long-lasting use in harsh environments
• Compatible with a wide range of pumps and water systems for versatile applications
• Provides consistent and reliable pressure control for smooth water delivery

Installation Instructions:

• Install the pressure switch near the water pump for optimal performance and easy access.
• Connect to the appropriate 12V or 24V system using the included wiring connectors.
• Ensure the pressure setting matches the requirements of your water system. The switch activates the pump when the pressure reaches 70 PSI.
• Ensure proper sealing and connection to prevent leaks and ensure reliable performance.
• Regularly check the switch and system for proper operation, especially during peak usage periods.
• Test the system periodically to ensure the pressure switch is functioning correctly and adjust if necessary.

How the Pressure Switch Works:

• The Jabsco 18916-1070 Pressure Switch operates by sensing the water pressure in the system. When the pressure drops below the set point (70 PSI), the switch activates the pump.
• Once the pump reaches the set pressure, the switch turns the pump off to prevent unnecessary cycling, ensuring efficient operation and consistent water pressure.
• This cycle continues, allowing for efficient water delivery while preserving the life of your pump and system.
• It effectively minimizes water hammer and reduces unnecessary energy consumption by controlling the pump's operation based on pressure needs.
• The pressure switch is built with long-lasting materials that resist corrosion, making it ideal for use in both fresh and saltwater environments.
