Jabsco 18777-0001B - Impeller Neoprene Kit

Jabsco 18777-0001B - Impeller Neoprene Kit

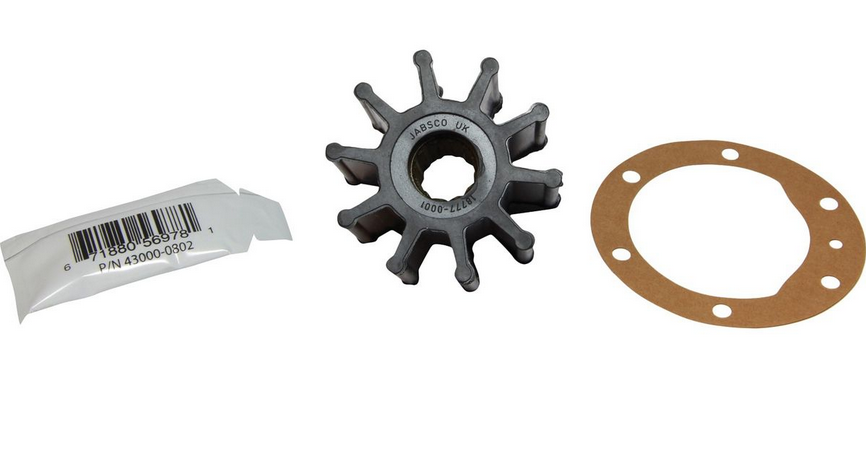

The Jabsco 18777-0001B Impeller Neoprene Kit is a high-quality replacement part designed for reliable and efficient performance in marine and industrial pumping systems. Made from durable neoprene material with a brass insert, this impeller ensures a long service life and excellent resistance to wear and tear. It features 10 blades for optimal fluid movement and is designed with a spline drive for secure and efficient power transmission. This kit is ideal for applications requiring a 57mm (2-1/4") diameter impeller and a 16mm (5/8") shaft diameter. The Jabsco 18777-0001B is a direct replacement for compatible Jabsco pumps, ensuring ease of installation and a perfect fit. With its HH profile, the impeller offers superior efficiency and reliability, making it a great choice for maintaining and improving the performance of your pumping system.

Key Features:

• Durable neoprene construction with a brass insert for extended wear resistance and durability.
• 10 blades for efficient fluid movement and optimal performance.
• Spline drive for secure and reliable power transfer.
• Perfectly fits pumps requiring a 57mm (2-1/4") diameter and 16mm (5/8") shaft diameter.
• HH profile for enhanced efficiency and consistent operation.
• Ideal for marine and industrial applications, including use in pumps for water and fuel systems.
• Improved flow rates and performance under various operating conditions.
• Designed for high-temperature and high-pressure conditions for superior reliability.

Specifications:

• Model: Jabsco 18777-0001B Impeller Neoprene Kit
• Material: Neoprene with Brass Insert
• Impeller Shaft Diameter: 16mm (5/8")
• Diameter: 57mm (2-1/4")
• Profile: HH
• Number of Blades: 10
• Drive Type: Spline Drive
• Depth: 51mm (2")
• Temperature Range: -40°F to 180°F (-40°C to 82°C)
• Flow Rate: Suitable for pumps with flow capacities ranging from 5 to 30 GPM (19 to 113 LPM), depending on pump type.
• Durability: Designed to withstand harsh operating conditions and resist wear from continuous pumping.
• Material Resistance: Excellent resistance to water, light oils, and common marine fluids.
• Easy installation with a precise fit for Jabsco pumps requiring the specified shaft and diameter size.
• Weight: Approx. 0.2 kg (0.44 lbs)
• Operating Pressure: Up to 40 PSI (2.8 bar) for optimal performance in high-pressure systems.
• Operating Speed: Recommended for use at speeds up to 3500 RPM for maximum efficiency.
• Recommended Pumping Fluids: Freshwater, saltwater, light oils, and diesel fuels (not suitable for gasoline or volatile liquids).
• Service Life: Typically lasts 250-500 hours of operation, depending on the operating conditions.
• Compatibility: Compatible with a wide range of Jabsco pumps, including models 45960-0000 and others requiring the specified impeller size.
• Compliance: Meets or exceeds industry standards for marine pumps, ensuring safe and efficient operation.

Applications:

• Marine pumps requiring a 57mm (2-1/4") diameter impeller.
• Industrial pumps for water, fuel, and light oil transfer.
• Ideal for applications with 16mm (5/8") shafts and spline drive systems.
• Replacement part for Jabsco pumps to maintain optimal performance and efficiency.
• Suitable for various pumping systems, including bilge pumps, fuel transfer pumps, and water circulation pumps.
• Used in agricultural irrigation systems and other fluid transfer applications.

Benefits:

• Long-lasting durability due to the high-quality neoprene material with brass insert.
• Improved pump efficiency with the 10-blade impeller design.
• Secure spline drive ensures reliable power transfer and consistent performance.
• Easy to install and replace, offering a seamless fit for Jabsco pumps.
• Enhances the overall performance and lifespan of your pump system.
• Highly resistant to marine environments and various industrial liquids.
• Prevents common issues such as cavitation and poor fluid flow, ensuring efficient operation.
• Cost-effective solution for extending the life of your pump system without needing to replace the entire unit.
• Optimized for use in high-flow and high-pressure systems for consistent performance in demanding conditions.
