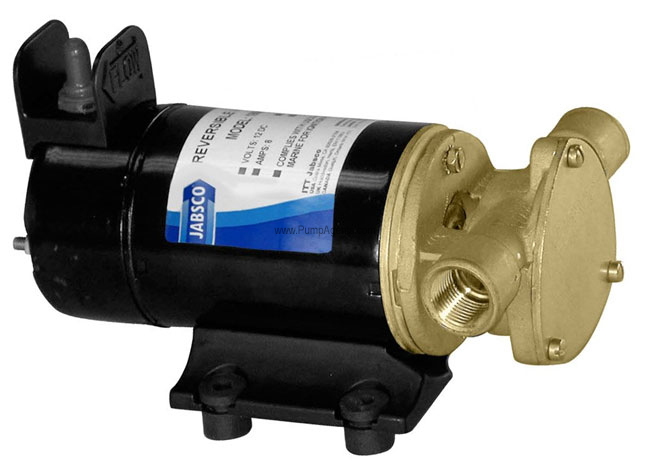

Jabsco 18680-1000 - Reversible Rotary Vane Pump 12V

Jabsco 18680-1000 - Reversible Rotary Vane Pump 12V

The Jabsco 18680-1000 Reversible Rotary Vane Pump is a reliable and versatile pump designed for transferring diesel fuel and other non-flammable liquids in marine applications. Featuring a durable bronze body, a nitrile lip shaft seal, and a permanent magnet motor, this pump offers excellent performance with a self-priming capability of up to 3 feet vertical lift and a maximum total head of 20 feet. Ideal for transferring fluids between fuel tanks or for general pumping needs, it can handle a variety of applications in harsh marine environments.

Key Features:

• Self-priming up to 3 feet vertical lift for ease of use.
• Maximum total head capacity of 20 feet for powerful performance.
• Built-in reversing switch for flexible operation, allowing the pump to transfer fluids in both directions.
• Corrosion-resistant bronze pump body for long-lasting durability in marine conditions.
• Includes 1/2" NPT internal pipe threads and 1" external hose barb for versatile plumbing connections.
• Operating temperature range of 22°F to 100°F (−5°C to 38°C), making it suitable for a wide range of conditions.
• Meets USCG 183.410 and ISO 8846 MARINE standards for ignition protection on gasoline-powered vessels.
• Intermittent duty design with a duty cycle of 30 minutes at 10 feet head at 86°F (30°C) to ensure reliable performance.

Specifications:

• Model: Jabsco 18680-1000 Reversible Rotary Vane Pump
• Body Material: Bronze
• Shaft Seal: Nitrile Lip
• Rotor Material: Vectra
• Vane Material: Ryton
• Motor: 12V DC Permanent Magnet, Intermittent Duty, Fully Enclosed with Stainless Steel Shaft
• Ports: 1/2" NPT Internal Pipe Threads, 1" External Hose Barb
• Height: 3-3/8" (86mm)
• Length: 8-5/8" (219mm)
• Width: 4-3/4" (121mm)
• Weight: 5-1/2 lbs (2.5 kg)
• Flow Rate: 5 GPM at 10' head
• Maximum Total Head: 20' (6m)
• Operating Temperature Range: 22°F to 100°F (−5°C to 38°C)
• Duty Cycle: 30 minutes at 10' head at 86°F (30°C)
• Fuse Size: 15 Amp

Applications:

• Ideal for transferring diesel fuel and other non-flammable liquids.
• Perfect for use in moving fuel between port and starboard tanks in marine vessels.
• Great for general-purpose fluid transfer in marine environments.
• Effective for pumping liquids in harsh conditions, including fuel transfer on gasoline-powered vessels.

Installation and Maintenance:

• The pump must be installed in a dry, ventilated location to prevent motor damage as the motor is not waterproof.
• The pump head can be rotated 180° to reverse the direction of flow as needed.
• Ensure all plumbing connections are airtight to enable quick priming and reliable operation.
• For optimal performance, do not run the pump dry; always ensure that liquid is being pumped to prevent damage to the rotor and vanes.
• Maintain the pump regularly by checking for debris and ensuring all hoses are properly secured to avoid leaks.

Warnings:

• Explosion hazard: Do not pump volatile liquids with a flash point below 100°F (38°C), as this could lead to fire or explosion.
• The pump is designed for intermittent duty – do not operate continuously for more than 30 minutes at a time.
• Always use proper wire sizes and fuses to avoid electrical hazards.
• If the pump is operated in an area with flammable vapors, ensure the wiring is properly insulated to prevent sparks.
