Jabsco 12520-1271 - Pump 1/4HP Tefc 1PH

Jabsco 12520-1271 - Pump 1/4HP Tefc 1PH

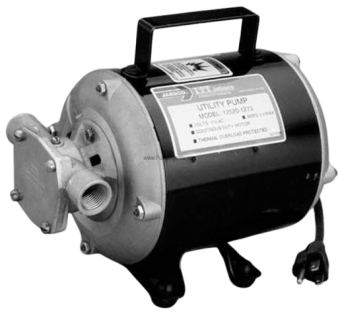

The Jabsco 12520-1271 is a high-performance, self-priming pump ideal for various industrial, marine, and farming applications. With a durable bronze body and a choice of neoprene, nitrile, or Viton impellers, this pump offers reliable fluid transfer for a wide range of fluids. Powered by a 1/4 horsepower, 115V AC, 60 Hz Totally Enclosed Non-Ventilated (TENV) motor, the pump operates at 1725 RPM to deliver smooth and efficient performance. Its robust construction includes a stainless steel shaft, thermal overload protection, and an 8-foot cord with a 3-prong grounded plug. With its 3/8" NPT internal and 3/4" GHT external ports, the Jabsco 12520-1271 is easy to install and provides versatility in various systems. The pump is designed for dewatering, drainage, circulation, and many other applications that require high efficiency and long-lasting performance.

Key Features:

• Self-priming design ensures easy operation, even when the pump is initially dry.
• Constructed with a durable bronze body to withstand harsh environments and resist corrosion.
• Choice of neoprene, nitrile, or Viton impellers to handle a wide variety of fluids.
• Lip-type shaft seal for effective sealing and minimized maintenance needs.
• Ports: 3/8” NPT internal for threaded connections and 3/4” GHT external for hose connections.
• Efficient 1/4 horsepower, 115V AC, 60 Hz TENV motor with 1725 RPM for consistent performance.
• Equipped with thermal overload protection for motor safety during extended operation.
• Stainless steel shaft adds durability and enhances the pump’s lifespan.
• 8-foot power cord with a 3-prong grounded plug for convenience and safety.
• Weighs 12 lbs (5.4 kg), ensuring portability and easy installation.

Specifications:

• Model: 12520-1271
• Pump Body: Bronze
• Impeller Material: Neoprene, Nitrile, or Viton*
• Shaft Seal: Lip Type
• Port Sizes: 3/8” NPT internal, 3/4” GHT external
• Motor: 1/4 horsepower, 115V AC, 60 Hz, TENV (Totally Enclosed Non-Ventilated) motor
• Motor Speed: 1725 RPM
• Thermal Overload Protector: Yes
• Stainless Steel Shaft: Yes
• Power Cord: 8 feet with 3-prong grounded plug
• Weight: 12 lbs (5.4 kg)
• Flow Rate: Up to 25 GPM (94.6 LPM)
• Maximum Head: 20 feet (6.1 meters)
• Maximum Pressure: 20 PSI (1.38 bar)
• Self-Priming: Yes, up to 6 feet (1.8 meters)
• Operating Temperature Range: 32°F to 140°F (0°C to 60°C)
• Maximum Fluid Viscosity: 1000 cP
• Material Compatibility: Works with water, mild chemicals, and non-abrasive fluids

Applications:

• Industrial: Ideal for circulating and transferring machine tool coolants, pumping brine, pharmaceuticals, soap, ink, dyes, and pumping water for cooling heliarc welding equipment.
• Farming: Suitable for pumping water for livestock, as well as from shallow wells and cisterns.
• Marine: Perfect for washdowns and utility dock-side pumping.
• Plumbing & Home Emergency Use: Excellent for pumping out flooded basements, cesspools, sumps, water heaters, drains, fishponds, and small pools.
• Public Utilities and Municipalities: Used for dewatering and draining meter boxes, excavations, dust control, and sampling.

Variations Available:

• 12520-1001: Open Drip Proof Motor, Neoprene Impeller
• 12520-1003: Open Drip Proof Motor, Nitrile Impeller
• 12520-0271: Totally Enclosed Motor, Neoprene Impeller

Benefits:

• Self-priming feature makes it easy to operate even when the pump is dry or has been inactive for a while.
• Heavy-duty bronze construction ensures durability and resistance to corrosion, making it suitable for a variety of harsh environments.
• Thermal overload protection keeps the motor safe from damage during continuous operation.
• Versatile impeller options (Neoprene, Nitrile, or Viton) for handling different fluids, including mild chemicals and water-based liquids.
• Compact and lightweight design makes installation and maintenance easier with minimal downtime.
• Ideal for a wide range of applications, offering reliability and cost-effective performance.
