The CE 16-12V Circulation Pump is designed for effective circulation of fresh water and diesel, featuring a robust construction that ensures reliability and efficiency in various applications; it includes a centrifugal electric pump with a cast iron body, bronze wheel, and AISI 316 stainless steel shaft, equipped with a mechanical seal made of ceramic, graphite, and NBR, along with a 12/24V DC motor with IP23 protection, and an AC option of 230V / 230–400V three-phase at 50Hz with IP55 protection. The pump has a liquid temperature range of +0 to +50 °C, a maximum suction depth of 7 m, a max operating pressure of 6 Bar, and it is recommended to install a check valve at the suction inlet, all from the trusted brand CEM.
- Description
- Ask a Question
-

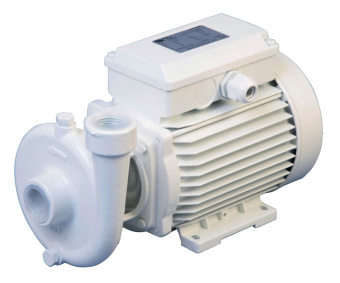

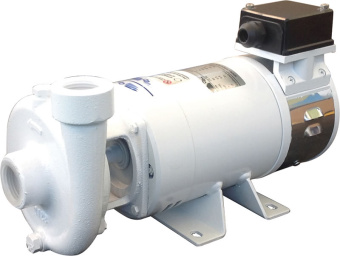

CE 16-12V Circulation Pump
The CE 16-12V Circulation Pump is designed for effective circulation of fresh water and diesel. Its robust construction ensures reliability and efficiency in various applications.
- Centrifugal electric pump for fresh water and diesel
- Pump body: Cast iron
- Wheel: Bronze
- Shaft: AISI 316 stainless steel
- Engine mount: Foundry
- Mechanical seal: Ceramic - graphite - NBR
- DC motor: 12/24V, Protection: IP23, Insulation class: F, Continuous service (S1)
- AC current: 230V / 230÷400V three-phase (T), 50Hz, IP55 protection, Insulation class F
- Liquid temperature range: +0 to +50 °C
- Maximum suction depth: 7 m
- Max operating pressure: 6 Bar
- Recommended to install a check valve at the suction inlet
- Brand: CEM
