Lectrotab KASL9X24 9" x 24" Trim Tab Kit with 6' Cable Actuators

SKU: VDM LECTKASL9X24

€ 2.006,35

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The 9" x 24" Trim Tab Kit enhances vessel performance with a non-hydraulic design, featuring a standard actuator, a 9" x 24" tab plate, and convenient one-touch leveling LED control for optimal handling.

Description
Ask a Question

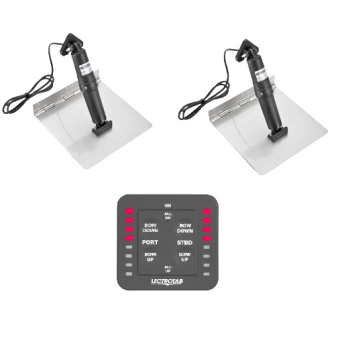

9" x 24" Trim Tab Kit with 6' Cable Actuators

This innovative trim tab kit enhances your vessel's performance with top-tier control and durability.
- Includes Standard Actuator with 23' (7m) cable, 12vdc, 2.25" (57mm) stroke, 8 second stroke time
- 9" x 24" Tab Plate

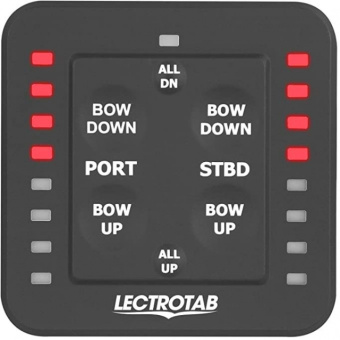

- One-Touch Leveling LED Control
Features:
- Non-hydraulic, electromechanical design; maintenance-free with no hydraulic oil needed.
- Constructed from 12 gauge stainless steel with a rolled and pinned hinge for enhanced strength.
- Internal actuator braking system keeps tab position stable in rough conditions.
- Convenient helm-mounted control switches for precise tab positioning.
- Full pivoting upper bracket for maximum installation flexibility.
- Patented ram seal prevents barnacle fouling and ensures watertight integrity.
- Non-metallic, double-insulated actuator, resistant to corrosion and UV deterioration.
- Microprocessor-based control with LED tab position indicators.
- Single button operation for simultaneous movement of both tabs.
- Compatible replacement for Oval LED (SETR-61) controls.
- Automatic return to last tab position when ignition is turned off and on.
- Completely sealed and waterproof, durable against sunlight exposure.
- Automatic tab retraction and calibration when the key or accessory switch is off.
- Easy upgrade from rocker switch style control.
- No external power module required for single or dual actuator systems.
- LED indicators adjust brightness automatically based on ambient light.
- Adjustable programming features accessible on the back of the specification sheet.
Brand: Lectrotab

Product Number: KASL9X24
