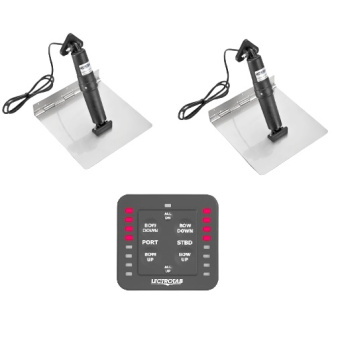

Lectrotab KASL12X24 12" x 24" Trim Tab Kit with 6' Cable Actuators

12" x 24" Trim Tab Kit with 6' Cable Actuators

This trim tab kit offers reliable performance and a user-friendly design, perfect for enhancing your boating experience.

• Standard Actuator with 23' (7m) cable, 12vdc, 2.25" (57mm) stroke, 8 second stroke time
• 12" x 24" Tab Plate

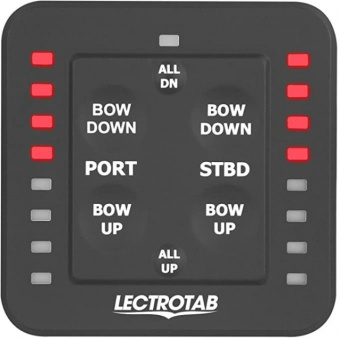

• One-Touch Leveling LED Control

Features:

• A non-hydraulic, electromechanical design that is maintenance-free and requires no hydraulic oil.
• 12 gauge stainless steel with an integrally formed 12 gauge rolled and pinned hinge to strengthen the tab and eliminate spot welds.
• An internal actuator braking design that maintains tab position in rough conditions and when backing down.
• Choice of convenient helm-mounted control switches which provide instant actuator start and stop for very accurate tab positioning.
• A full pivoting upper bracket for maximum installation flexibility.
• A patented ram seal that cannot be fouled by barnacle growth and a patented internal pressurization system for added watertight integrity.
• A complete non-metallic, double-insulated actuator which cannot corrode and will not deteriorate in the sun or underwater.
• Microprocessor-based trim tab control with LED tab position indicators.
• Single button press to move both tabs up or down simultaneously.
• Direct replacement for Oval LED (SETR-61) controls.
• Automatic return to last tab position if the ignition key is turned off and back on again.
• Completely sealed, completely waterproof, and will not deteriorate in sunlight.
• Automatic tab retraction and calibration with key or accessory switch off.
• Easy upgrade from rocker switch style control.
• No external power module is required for single or dual actuator per tab systems.
• LED tab position indicators dim automatically in darkness and brighten in the sunlight.
• Adjustable programming features are located on the back of the specification sheet.

Brand: Lectrotab

Product Number: KASL12X24
