SKU:
VDM CEM00040
€ 2.499,99
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The Grey Water Pump Bronze SBR - 24V is a self-priming pump designed for grey and black water applications, featuring a robust construction with a bronze body and AISI 316 stainless steel components. It operates efficiently with a DC motor (12/24V) and an AC option (230V/400V), suitable for continuous service. The pump supports a liquid temperature range of +0 to +70 °C, a maximum suction depth of 6 m, and a maximum operating pressure of 6 Bar, making it a reliable choice for various pumping needs.
- Description
- Ask a Question
-

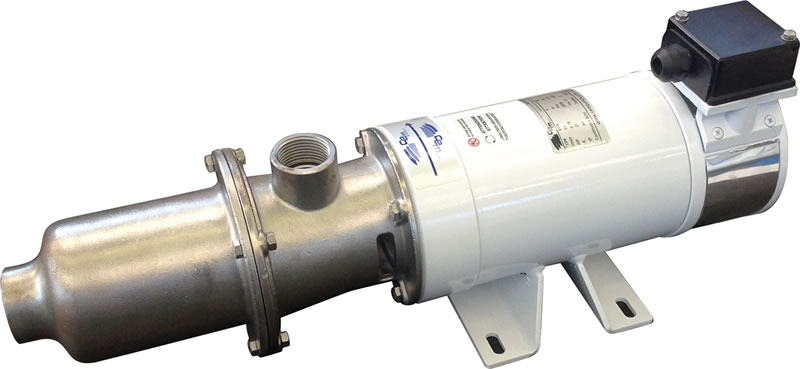

Grey Water Pump Bronze SBR - 24V
This self-priming pump is engineered for grey and black water applications, ensuring efficient and reliable operation.
- Pump Body: Bronze (SBR) - AISI 316 (SBX) Stainless Steel
- Shaft: AISI 316 stainless steel
- Rotor: AISI 316 stainless steel
- Coupling: AISI 316 stainless steel - NBR
- Stator: NBR
- Mechanical Seal: Ceramic - Graphite - NBR (special anti-corrosion)
- DC Motor: 12/24V, IP44 protection, insulation class F, continuous service (S1)
- AC Current: 230V / 230÷400V three-phase (T), 50Hz, IP44/55 protection, insulation class F, continuous service (S1)
- Liquid Temperature Range: +0 to +70 °C
- Maximum Suction Depth: 6 m
- Max Operating Pressure: 6 Bar
- Brand: CEM
VDM - Reya SKU: CEM00040 -
Ask a Question
