Jabsco Manual Marine Toilet Twist 'n' Lock

€ 286,78

1-2 weeks delivery time
Price incl. 19% VAT

Type:

Compact
Comfort

The Jabsco manual marine toilet is a compact bowl manually operated marine toilet suitable for use on sea and fresh water. Its design ensures trouble-free installation and easy part replacement. Popular worldwide for more than two decades, Jabsco marine toilets are known for their reliability and simplicity, making them a favorite choice among sailors and powerboat owners.

A hand-held sea toilet made of white eco-friendly ceramics. It is suitable for installation both above and below the waterline, which is very convenient. It works, both on sea and fresh water. Double-acting pump and automatic filling. It is equipped with an aerodynamic pump lever, as well as a vacuum valve. Trouble-free installation and easy part replacement and repair. Best galley for your vessel.

Description
Ask a Question

Jabsco Manual Marine Toilet Twist 'n' Lock

The Jabsco Manual Marine Toilet Twist 'n' Lock is a trusted choice for marine sanitation, offering durability, reliability, and simplicity. Designed for trouble-free installation and easy part replacement, this compact bowl manual toilet is suitable for use on both sea and fresh water. Its white vitreous china bowl, enameled wooden seat, and cover provide a clean and hygienic appearance, while the polypropylene pump casing ensures lasting performance even in harsh marine conditions.

Available in regular or compact bowl sizes, the Jabsco manual toilet features a reversible pump mounting for left or right-handed installation, allowing for flexibility in setup. Its multi-angled discharge elbow and crevice-free contours make installation and maintenance hassle-free. Whether installed above or below the waterline, this toilet is equipped to handle seawater and freshwater with ease, thanks to its corrosion-resistant materials.

Technical Specifications:
- Model:
  - 29090-5000: Manual 'Twist n' Lock' toilet, compact bowl
  - 29120-5000: Manual 'Twist n' Lock' toilet, regular bowl
- Connections:
  - Inlet Hose: 19mm (¾”) bore
  - Discharge Hose: 38mm (1½”) bore

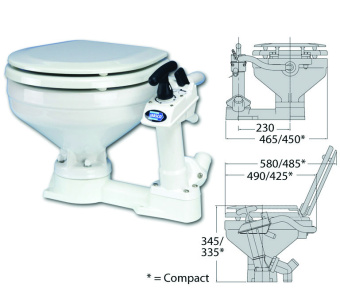

- Dimensions:
  - Compact Bowl (29090-5000): 455mm wide, 425mm deep, 345mm high
  - Regular Bowl (29120-5000): 470mm wide, 485mm deep, 345mm high
- Materials:
  - Bowl: White vitreous china
  - Seat and Cover: Enameled wood
  - Pump Casing: Polypropylene
- Installation:
  - Reversible pump mounting for left or right-handed installation
  - Suitable for installation above and below the waterline
- Features:
  - Double Action Pump/Auto Fill
  - Automatic vacuum valve
  - Aerodynamic lever of pump
  - Multi-angled discharge elbow for ease of installation
  - Fully sealed motor with Dry-Run protection device
  - Corrosion-resistant materials for fresh or salt water service
  - All fastenings face front or top for ease of maintenance
Whether you choose the compact or regular bowl size, the Jabsco Manual Marine Toilet Twist 'n' Lock provides reliable marine sanitation for your vessel, ensuring comfort and convenience on the water.

Jabsco Catalog Parts: 29090-5000, 29120-5000

How does the return mechanism function in marine manual toilet systems?

The return mechanism in marine toilet systems is responsible for directing waste from the bowl to the holding tank. After flushing, the waste is drawn into the discharge pump housing and sent to the holding tank through the discharge line. This process ensures that the toilet bowl is cleared of waste and ready for subsequent use, maintaining cleanliness and sanitation onboard.

The return mechanism in marine toilet systems is crucial for maintaining proper sanitation onboard. It ensures that waste is efficiently directed from the bowl to the holding tank, preventing potential issues such as flooding and waste backflow. Regular maintenance and inspection of the system are necessary to ensure smooth operation and prevent any malfunctions. Additionally, it's essential to use high-quality components and follow the manufacturer's guidelines during installation to ensure a proper fit and functionality. Properly functioning marine toilets, whether manual or powered, are essential for the comfort and hygiene of passengers and crew while navigating rivers, lakes, canals, or open waters.

What role does the external seal play in maintaining the integrity of marine toilet systems?

The external seal in marine toilet systems plays a crucial role in preventing leakage and maintaining the integrity of the system. It creates a tight seal between the toilet and the surrounding environment, ensuring that no water or waste can escape. This seal is designed to withstand the harsh marine conditions, including exposure to saltwater, ensuring reliable performance over time.

The external seal, a critical component of marine toilet systems, ensures a watertight connection to prevent any leaks. This seal is fundamental for maintaining sanitation onboard and is engineered to endure the demanding conditions of marine environments. Regular inspection and maintenance are necessary to ensure the seal's integrity, helping to avoid any potential issues with leakage or contamination. Additionally, it's advisable to consider factors such as the angle and plumb of the toilet during installation to optimize its performance and reliability.

What maintenance steps are recommended for keeping the Jabsco Twist 'n' Lock Manual Marine Toilet clean and operational?

To maintain the Jabsco Twist 'n' Lock Manual Marine Toilet in optimal condition, it's recommended to regularly clean the toilet bowl and surrounding areas with mild detergents to prevent buildup and odors. Additionally, checking and replacing worn-out seals, particularly the external seal, is crucial to prevent leaks and ensure proper operation. It's also important to inspect the pump assembly and base for any signs of damage or corrosion, ensuring all components are functioning correctly to avoid issues such as flooding or waste backflow. Regular maintenance helps to extend the lifespan of the toilet and ensures reliable performance during use on marine vessels.

Regular maintenance of the Jabsco Twist 'n' Lock Manual Marine Toilet also involves checking the supply of necessary parts and components to ensure uninterrupted operation. It's advisable to keep a supply of replacement parts such as seals and pump assemblies on hand to address any issues promptly. Additionally, staying informed about any updates or improvements to the model through the manufacturer's website or email notifications can help optimize the toilet's performance. By staying proactive and addressing any issues promptly, boat owners can ensure that their marine toilets remain reliable and operational, whether used on a lake, canal, or in marine environments with varying currents.
