Jet Thruster JT-S90 Water Flow Single Thruster 90 kgf

1-2 weeks delivery time
Price incl. 19% VAT

Type:

Standard
Aluminum

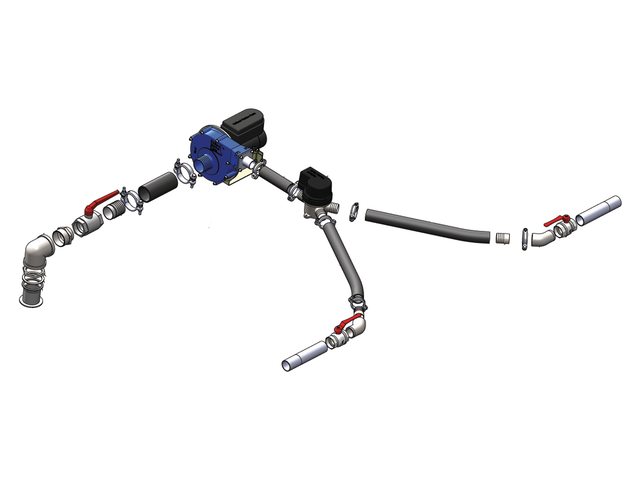

The Jet Thruster JT-S90 provides 90 kgf of thrust, offering quiet and efficient boat maneuvering. This water jet thruster operates on the principle of seawater suction and expulsion through nozzles at the aft of the boat. With a powerful 15.5 kW centrifugal pump, three-way valve, and electric control, it runs on 24V DC, minimizing noise and delivering excellent performance.

Description
Ask a Question

Jet Thruster JT-S90 Water Flow Single Thruster 90 kgf

The Jet Thruster JT-S90 is designed to offer 90 kgf of thrust, providing powerful and nearly silent operation. Utilizing the suction of seawater, it expels water through nozzles located at the aft of the vessel. The absence of a propeller ensures minimal noise and smooth operation, ideal for both quiet maneuvering and enhancing the overall boating experience. The system features an 11.5 kW centrifugal pump, three-way valve, and electric control for precise and reliable functionality.

Features:

Thrust Force: 90 Kgf
Operating Voltage: 24V DC
Electric Motor Power: 15.5 kW
Battery Cable Size: +/- 1m -> 120mm²/3ft -> 4/0 AWG
Water Intake: 1m (equipped with a Ø 4" intake)
Water Output: Ø 50mm
Hose Diameter: 3" (76mm)
Pump Weight: 49kg

The Jet Thruster JT-S90 is engineered for seamless integration into your boat, ensuring smooth and efficient maneuvering. With its advanced water jet technology and robust build, this thruster excels in both performance and durability. The electric control and centrifugal pump allow for superior performance while maintaining quiet operation.

Device Types:

Tip	Embedded in Aluminum Boat	Axial Load, kN	Voltage, V	Current, A	Fuse, A	Batteries	No Cable, mm²	Pump Specific Gravity, kg
JTS30	No	30	12	480	500	1 x Yellow Top 75 A	50	29
JTS30A	Yes	30	12	480	500	1 x Yellow Top 75 A	50	29
JTS50	No	50	24	480	500	2 x Yellow Top 75 A	50	35
JTS50A	Yes	50	24	480	500	2 x Yellow Top 75 A	50	35
JTS70	No	70	24	800	850	4 x Yellow Top 75 A	95	49
JTS70A	Yes	70	24	800	850	4 x Yellow Top 75 A	95	49
JTS90	No	90	24	1000	1000	4 x Yellow Top 75 A	120	61
JTS90A	Yes	90	24	1000	1000	4 x Yellow Top 75 A	120	61

The Jet Thruster JT-S90 is designed for maximum thrust while maintaining quiet, efficient operation. Its advanced water jet system provides a high-performance maneuvering solution for your boat, ensuring smooth and effortless control while reducing noise levels.
