Jet Thruster JT-C30 Water Flow Double Thruster 30 kgf

1-2 weeks delivery time
Price incl. 19% VAT

Type:

Standard
Aluminum

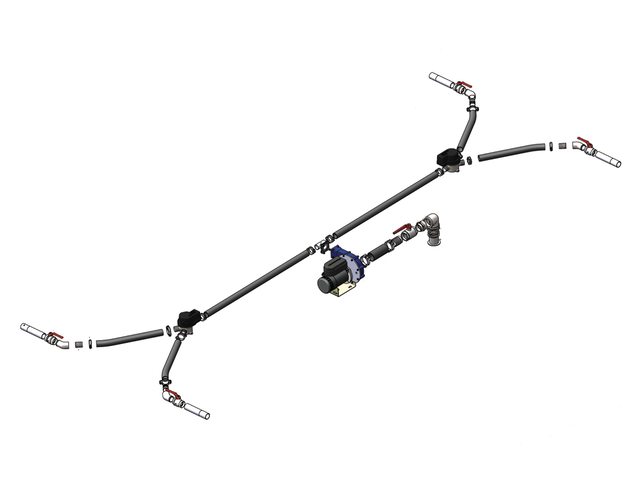

The Jet Thruster JT-C30 is a dual water jet thruster designed for both aft and bow applications, providing immediate maneuverability for your vessel. With this system, your ship will always be agile, easily navigating through challenging areas. The thruster operates by suctioning sea water and is equipped with a powerful centrifugal pump, a three-way valve, and electrical control.

Description
Ask a Question

Thrust Force: 30 Kgf
Operating Voltage: 12V DC
Electric Motor Power: 3 kW
Battery Cable Size: +/- 50mm²/3ft (equivalent to 1/0 AWG)
Water Intake: 1m (equipped with a 90mm/3.5" diameter intake)
Water Outlet: 1 x Ø 90 mm/3.5"
Pressure Hose Diameter: 2" (51 mm)
Weight of Pump: 29 kg

The Jet Thruster JT-C30 is an excellent choice for boat owners who want exceptional maneuverability. It covers both the stern and bow of the vessel, ensuring that even the most challenging areas can be easily navigated. This thruster system utilizes sea water suction and produces minimal noise due to its innovative design.

Device Types: In

Tip	Embedded in aluminum boat	Axial load, kN	Voltage, V	Current, A	Fuse, A	Batteries	No cable, mm ²	Pump specific gravity, kg
JTC30	No	30	12	480	500	1 x Yellow Top 75 A	50	29
JTC30A	Yes	30	12	480	500	1 x Yellow Top 75 A	50	29
JTC50	No	50	24	480	500	2 x Yellow Top 75 A	50	35
JTC50A	Yes	50	24	480	500	2 x Yellow Top 75 A	50	35
JTC70	No	70	24	800	850	4 x Yellow Top 75 A	95	49
JTC70A	Yes	70	24	800	850	4 x Yellow Top 75 A	95	49
JTC90	No	90	24	1000	1000	4 x Yellow Top 75 A	120	61
JTC90A	Yes	90	24	1000	1000	4 x Yellow Top 75 A	120	61
