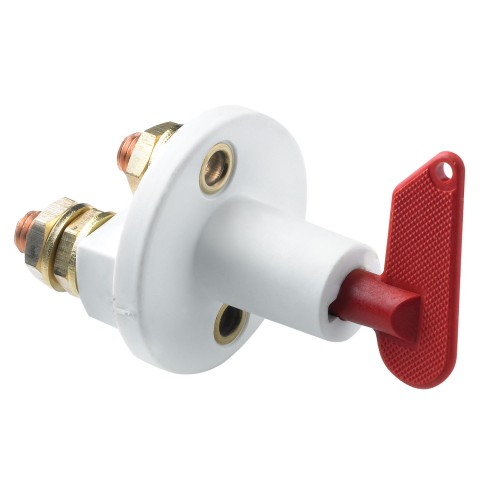

Vetus BATSW Thruster Battery Switch

€ 43,11

1-2 weeks delivery time
Price incl. 19% VAT

Current (Amps):

75A
100A
150A Black
150A Red
250A
250A Double
600A

The Vetus BATSW Thruster Battery Switch is a crucial component for marine electrical systems, offering versatile installation by connecting to either positive or negative cables. It features an "on" and "off" position with a removable key for security, making it an essential safety tool for marine vessels. Available in various amperage ratings, including 75A to 600A, this switch is designed to interrupt electrical circuits and facilitate troubleshooting.

Description
Ask a Question

Vetus BATSW Thruster Battery Switch

The Vetus BATSW Thruster Battery Switch is a vital safety component for any marine electrical system. It allows you to disconnect the electrical circuit completely, ensuring safety during maintenance and providing a means of troubleshooting. This switch can be connected to either a positive or negative electrical cable, offering versatility in installation. With multiple amperage options ranging from 75A to 600A, it caters to various power needs. The switch offers a simple yet effective "on" and "off" mechanism, with the key being removable when the switch is in the "off" position for added security.

Main Features:

Electrical Circuit Interruption: The switch interrupts all electrical circuits, ensuring safety during maintenance and repairs.
Security: The key can be pulled out when in the "off" position, adding an extra layer of security.
Versatile Installation: Can be connected to either positive or negative cables, offering flexibility in installation.
Durability: The switch is designed to withstand the marine environment, ensuring reliable performance over time.
Waterproof Option: The model BATSW600 is waterproof with an IP67 rating, providing extra protection in challenging marine conditions.

Available Models:

75A
100A
150A (Red)
150A (Black)
250A
250A (Double Pole)
600A (Waterproof, IP 67)

Technical Specifications:

	BATSW075	BATSW100	BATSW150	BATSW250	BATSW250T	BATSW600
Rated operating voltage:	max. 24 V	max. 24 V	max. 24 V	max. 24 V	max. 24 V	max. 24 V
Maximum current (continuous):	75 A	100 A	150 A	250 A	2x250 A	450 A
Maximum current (at 3 seconds load):						800 A
Maximum current (at 5 seconds load):	350 A	500 A	1000 A	2500 A	2x2500 A	3500 A

The Vetus BATSW Thruster Battery Switch is a robust and reliable solution for managing electrical power on your vessel. Whether you're using it for safety purposes, maintenance, or power control, it ensures smooth and secure operation. Its available models cater to different amperage needs, and the waterproof version provides an extra level of protection for marine environments.
