Lecomble & Schmitt 2203669 HB 5 Tilt Pump - 35 CT

SKU: VDM LECO2203669

€ 1.318,22

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The HB 5 Tilt Pump - 35 CT is a cutting-edge hydraulic steering solution that integrates directly into the steering system, featuring a compact design, adjustable steering wheel angles from -24° to +24°, and a flow rate of 35 cc/t, ensuring smooth operation with a maximum wheel diameter of 500 mm.

Description
Ask a Question

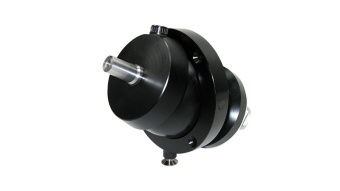

HB 5 Tilt Pump - 35 CT

The HB 5 Tilt Pump - 35 CT is a state-of-the-art steering solution that enhances your boating experience with its compact design and advanced functionalities.
- Steerable hydraulic pump integrated directly into the steering system (Tilt).

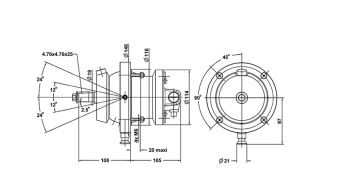

- Steering wheel adjustment from -24° to +24° (5 positions).
- Equipped with non-return valves to prevent unwanted cylinder movement.
- Pressure relief valves protect the circuit from abnormal pressure build-up.
- Complete movement from port to starboard takes between 3.4 and 6.8 turns of the steering wheel, depending on the LS hydraulic cylinder model.
- Flow rate: 35 cc/t.
- Minimum tubing size: 8x10 mm.
- Weight: 4.9 kg.
- Volume: 400 cc.
- Maximum wheel diameter: 500 mm.
Brand: Lecomble & Schmitt. Product Number: 2203669
