Lecomble & Schmitt 2202932 Cylinder VHM 63 DT C345 APD

SKU: VDM LECO2202932

€ 2.312,91

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The LS hydraulic cylinders enhance steering for inboard motors, reducing physical effort and providing quick, accurate responses. Suitable for single and twin rudder boats, it has a stroke of 345 mm, a volume of 862 cc, a maximum torque of 450 m.kg, and a weight of 15.7 kg.

Description
Ask a Question

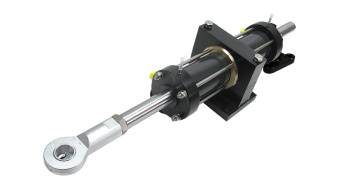

Cylinder VHM 63 DT C345 APD

The LS hydraulic cylinders play a crucial role in steering inboard motors, enhancing safety, handling, precision, and comfort while piloting a boat. They significantly reduce the physical effort needed to maneuver the vessel. The steering pump delivers oil to the hydraulic cylinder, generating the necessary force to steer the rudder. LS hydraulic cylinders ensure a quick and accurate steering response.
- Designed for single and twin rudder pleasure boats and inboard motor boats up to 450 m.kg.

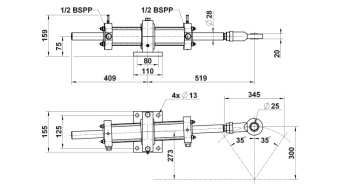

- Stroke: 345 mm
- Volume: 862 cc
- Maximum torque: 450 m.kg
- Maximum pressure: 60 bar
- Radius of tiller arm: 300 mm
- Total rudder angle: 70 °
- Weight: 15.7 kg
- Requires minimal maintenance due to design and material selection.
- Compact size for easy installation.
- 2-year guarantee and compliant with European regulations.
Brand: Lecomble & Schmitt

Product Number: 2202932
