MaviMare Universal Hydraulic Steering GF300BHD

Article 4344380 FNI

€ 1.375,88

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

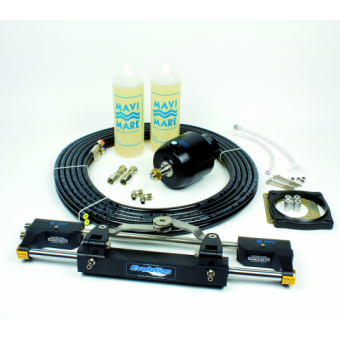

The GF300BT universal steering kit is compatible with all engine types and features a front-mounted Pump-GM2 MRA01 with a non-return valve and pressure relief, along with a semi mount square flange. It includes a 7-piston system with a volume of 27 cm³, a maximum pressure of 60 bar, and weighs 5.5 kg. The kit also comes with an MC300BHD cylinder (130 cm³ volume, 198 mm stroke), 2 liters of hydraulic oil, 2 R7 tubes (5/16 lung, 7.50 m), and 2 connectors for flexible length adjustments.

Description
Ask a Question

Universal Hydraulic Steering GF300BHD 4344380 FNI

The GF300BT universal steering kit is designed for compatibility with all engine types, ensuring versatile application across various hydraulic steering systems.
- Includes Pump-GM2 MRA01 front-mounting with non-return valve and pressure relief.
- Features a semi mount square flange for flexible installation options.
- Piston specifications: 7 pistons, volume of 27 cm³, max pressure of 60 bar, weight of 5.5 kg.
- Cylinder model: MC300BHD with a volume of 130 cm³ and a stroke length of 198 mm.
- Hydraulic oil capacity: 2 liters.
- Includes 2 R7 tubes (5/16 lung, 7.50 m) connected from one side.
- Comes with 2 connectors for customized lengths as needed.
MAVI.MARE: GF300BHD
Forniture Nautiche Italiane: 4344380
EAN: 8057741268093
