SKU:
ALP AL420027
€ 495,12
1-2 weeks delivery time
-
+
The PSM 60 Dual Stage Damper Plate with a 314.32mm diameter is suited for high torque demands, offering 600Nm of continuous torque and compatibility with SAE J620 10" flywheels. It features 26 teeth, a 295.3mm pitch diameter, and mounts using eight 11mm holes, ensuring strong and stable installation.
- Description
- Ask a Question
-
PSM 60 Dual Stage Damper Plate, Ø314.32mm, 26 Teeth, SAE 10''
This model is tailored for higher torque needs with a 314.32mm diameter and continuous torque rating of 600Nm. It fits 10" SAE J620 flywheels and uses mounting holes sized to handle greater stresses.
- Article Number: AL420027
- Diameter: 314.32mm
- Continuous Torque: 600Nm
- Maximum Torque: 1000Nm
- Splines: 26 Teeth
- Hole Pitch Diameter: Ø295.3mm
- Mounting: 8 holes, each Ø11mm
- Flywheel Standard: SAE J620 10"

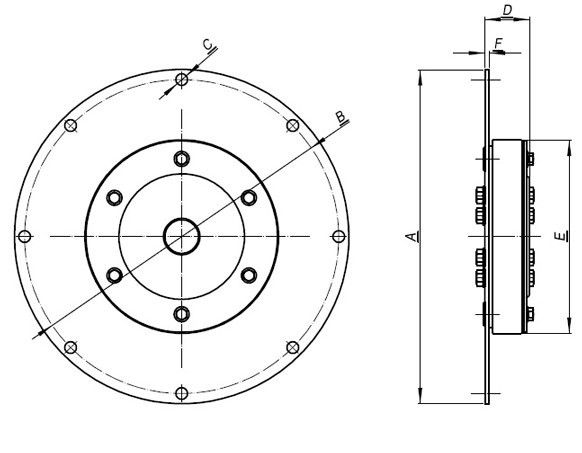

- Size D: 42mm
- Size E: 182mm
- Size F: 4mm
-
