SKU:
ALP AL420018
€ 459,43
1-2 weeks delivery time
-
+
The PSM 60 Dual Stage Damper Plate with a 241.3mm diameter offers a balance between size and performance, handling 500Nm of continuous torque. It is compatible with SAE J620 7-1/2" flywheels and features 26 teeth, a hole pitch diameter of 222.25mm, and an 8-hole mounting pattern with 8.5mm diameter holes.
- Description
- Ask a Question
-
PSM 60 Dual Stage Damper Plate, Ø241.3mm, 26 Teeth, SAE 7-1/2''
This damper plate combines moderate size and torque capabilities, suitable for 7-1/2" SAE J620 flywheels. It maintains a continuous torque of 500Nm and features a precise mounting hole layout.
- Article Number: AL420018
- Diameter: 241.3mm
- Continuous Torque: 500Nm
- Maximum Torque: 800Nm
- Splines: 26 Teeth
- Hole Pitch Diameter: Ø222.25mm
- Mounting: 8 holes, each Ø8.5mm
- Flywheel Standard: SAE J620 7-1/2"

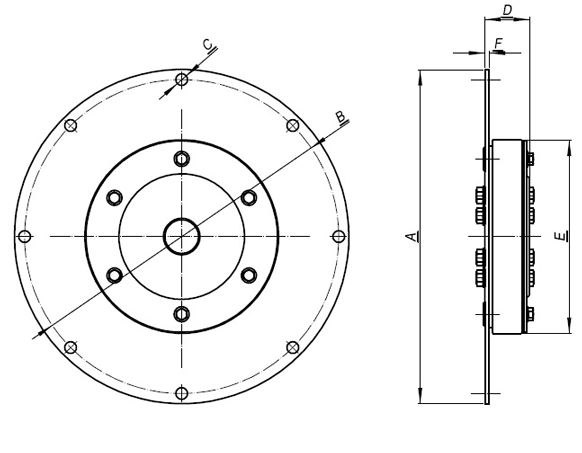

- Size D: 37mm
- Size E: 182mm
- Size F: 4mm
-
