SKU:
ALP AL420017
€ 459,43
1-2 weeks delivery time
-
+
The PSM 60 Dual Stage Damper Plate with a diameter of 215.9mm is designed for lighter torque applications, supporting up to 500Nm of continuous torque and fitting 6-1/2" SAE J620 flywheels. It features 26 teeth, a hole pitch diameter of 200.02mm, and mounts using six 8.5mm holes, making it suitable for compact setups.
- Description
- Ask a Question
-
PSM 60 Dual Stage Damper Plate, Ø215.9mm, 26 Teeth, SAE 6-1/2''
Designed for lighter torque applications, this damper plate supports continuous torque up to 500Nm and fits 6-1/2" SAE J620 flywheels. It includes a smaller diameter and mounting suited for compact setups.
- Article Number: AL420017
- Diameter: 215.9mm
- Continuous Torque: 500Nm
- Maximum Torque: 800Nm
- Splines: 26 Teeth
- Hole Pitch Diameter: Ø200.02mm
- Mounting: 6 holes, each Ø8.5mm
- Flywheel Standard: SAE J620 6-1/2"

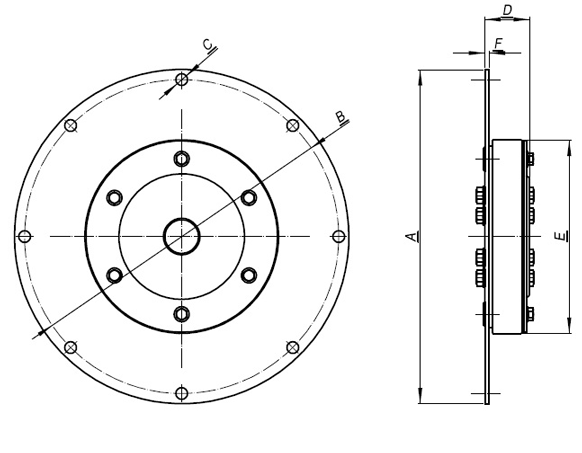

- Size D: 37mm
- Size E: 182mm
- Size F: 4mm
-
