SKU:
CN BLBNF502200
€ 2.312,25
1-2 weeks delivery time
-
+
The Propeller Shaft Tube Water-lubricated Ø50 mm provides a robust solution with GRP sleeving and bronze-bearing components, suitable for steel or aluminium vessels. It works with Volvo Seal systems and is custom-fabricated to specified lengths.
- Description
- Ask a Question
-
Propeller Shaft Tube Water-lubricated Ø50 mm
This water-lubricated tube, designed for steel or aluminium ships, features a GRP sleeve and pre-assembled bearings for reliable performance.
- Includes 2x pre-assembled water-lubricated propeller shaft bearings with bronze outer bush.
- Comes with steel or aluminium outer tube, ClampSeal at the back, and ClampSeal with water inlet for Volvo Seal tube seal at the front.
- The Volvo Seal box seal must be ordered separately. Other box seals can be provided upon consultation.

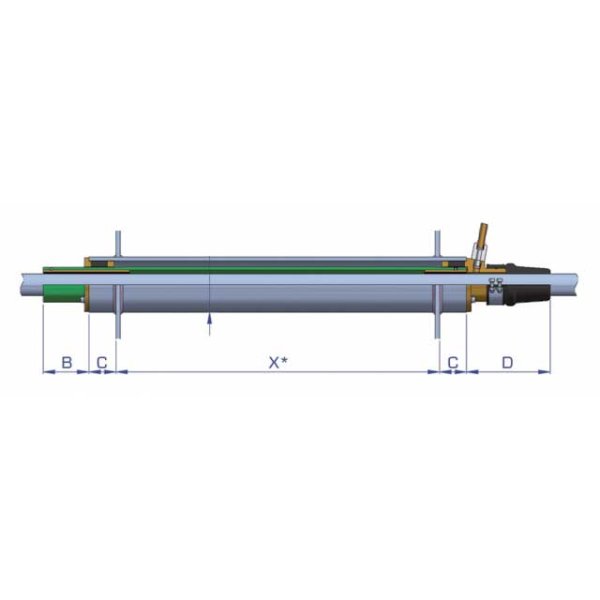

- Custom-made to your specifications. Provide size X (installation length) when ordering.
- Shaft diameter: Ø50 mm
- Welding length: 2200 mm
- Maximum tube length: 2407 mm
- Outer tube (steel): Ø127 x 7.1 x 2320 mm
- Outer tube (aluminium): Ø130.0 x 10.0 x 2320 mm
-
