SKU:
CN BLBNF452000
€ 2.218,04
1-2 weeks delivery time
-
+
The Propeller Shaft Tube Water-lubricated Ø45 mm is engineered for steel or aluminium ship use, incorporating GRP-sleeved bearings and compatibility with Volvo Seal fittings. It’s available as a custom solution based on installation requirements.
- Description
- Ask a Question
-

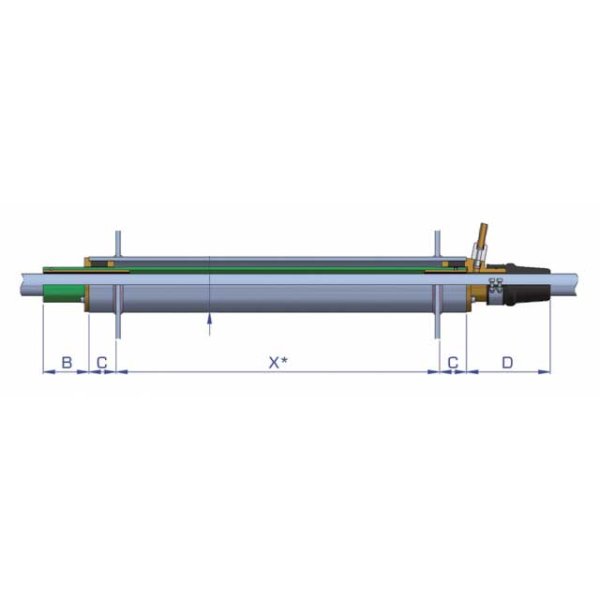

Propeller Shaft Tube Water-lubricated Ø45 mm
Optimized for steel or aluminium ships, this tube features water-lubricated bearings and a durable GRP sleeve.
- Includes 2x pre-assembled water-lubricated propeller shaft bearings with bronze outer bush.
- Comes with steel or aluminium outer tube, ClampSeal at the back, and ClampSeal with water inlet for Volvo Seal tube seal at the front.
- Volvo Seal box seal must be ordered separately. Other box seals can be provided upon consultation.
- Custom-made to your specifications. Provide size X (installation length) when ordering.
- Shaft diameter: Ø45 mm
- Welding length: 2000 mm
- Maximum tube length: 2207 mm
- Outer tube (steel): Ø127 x 7.1 x 2120 mm
- Outer tube (aluminium): Ø130.0 x 10.0 x 2120 mm
-
