SKU:
CN BLBNF401800
€ 1.592,89
1-2 weeks delivery time
-
+
The Propeller Shaft Tube Water-lubricated Ø40 mm is tailored for use on steel or aluminium ships and includes pre-assembled water-lubricated bearings and a GRP sleeve. It supports Volvo Seal systems and is built to customer-defined dimensions.
- Description
- Ask a Question
-
Propeller Shaft Tube Water-lubricated Ø40 mm
For use on steel or aluminium ships, this model is equipped with water-lubricated bearings and a GRP sleeve for enhanced performance.
- Includes 2x pre-assembled water-lubricated propeller shaft bearings with bronze outer bush.
- Comes with steel or aluminium outer tube, ClampSeal at the back, and ClampSeal with water inlet for Volvo Seal tube seal at the front.
- Volvo Seal box seal must be ordered separately. Other box seals can be provided upon consultation.

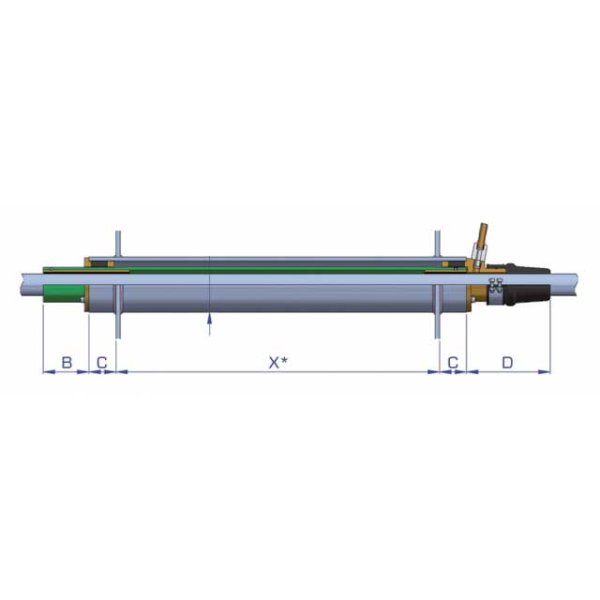

- Custom-made to your specifications. Provide size X (installation length) when ordering.
- Shaft diameter: Ø40 mm
- Welding length: 1800 mm
- Maximum tube length: 1987 mm
- Outer tube (steel): Ø101.6 x 6.3 x 1900 mm
- Outer tube (aluminium): Ø110.0 x 10.0 x 1900 mm
-
