SKU:
ALP 9088002YANMAR
€ 766,18
1-2 weeks delivery time
-
+
The M-160 2.2 Centaflex Coupling offers a compact design with a maximum torque of 500 Nm for pleasure craft applications. It is compatible with Kanzaki and Yanmar marine gearboxes and provides reliable torque transmission while accommodating angular misalignment up to 2°.
- Description
- Ask a Question
-

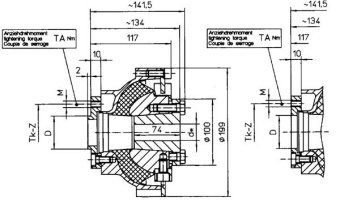

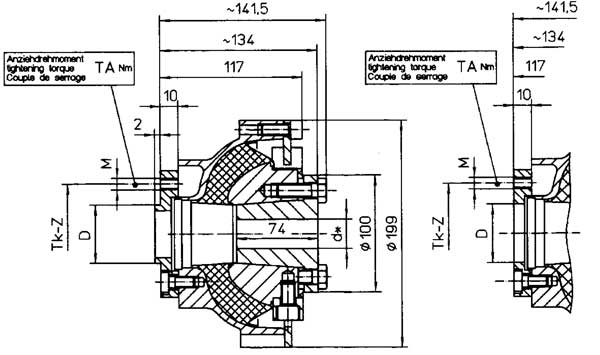

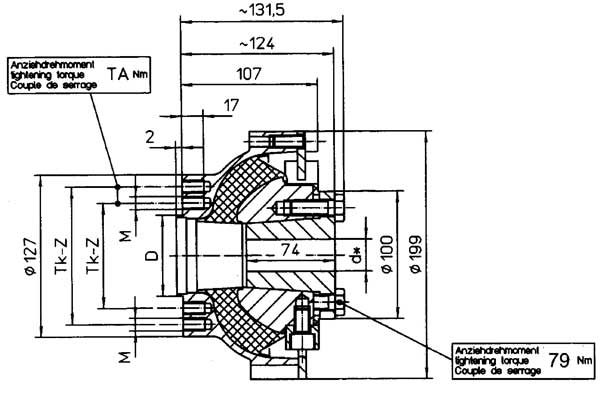

Centaflex Coupling, M-160 2.2, Max. 500nm (Pleasure Craft), D=50mm, Tk=78mm, Z=4x90°, M=M10
This M-160 2.2 coupling version is optimized for compatibility with Kanzaki and Yanmar marine gearboxes, offering compact dimensions and stable torque performance.
- Article number: 9088002YANMAR
- EAN: 8719182663898
- Model: M-160-K2.2-*
- Maximum RPM: 3500
- Torque limit (Commercial use): 350 Nm
- Torque limit (Pleasure craft): 500 Nm
- Maximum allowed angular misalignment: 2°
- Dimension D: 50 mm
- Thread size M: M10
- Thickness Tk: 78 mm
- Bolt pattern Z: 4x90°
- Geartype compatibility: Kanzaki KC30, KC100, Yanmar 3GM30, 3HM
- Axial thrust absorption TA: 45 Nm
-
