The M-127 3.3 Centaflex Coupling is designed for inboard applications, offering torque handling up to 250 Nm and supporting up to 2° of angular misalignment. It is compatible with ZF-BW7-Bukh gear types, providing robust performance and reliable torque transfer for pleasure craft.
- Description
- Ask a Question
-

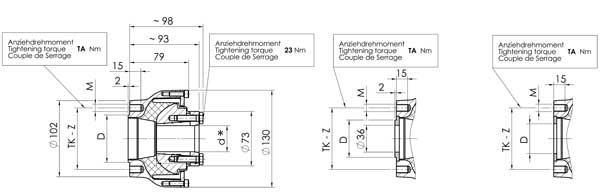

Centaflex Coupling, M-127 3.3, Max. 250nm (Pleasure Craft), D=47mm, Tk=74,5mm, Z=4x90°, M=M8
Flexible coupling model M-127 3.3 designed for inboard applications. It supports up to 250 Nm torque in pleasure crafts, allowing angular misalignment of up to 2°.
- Article number: 9088001BUKH
- EAN number: 8719182662754
- Model: M-127-K3.3-*
- Max. RPM: 4500
- Torque (Commercial): 175 Nm
- Torque (Pleasure): 250 Nm
- Max. allowable angular misalignment: 2°
- Size D: 47 mm
- Size M: M8
- Size Tk: 74,5 mm
- Size Z: 4x90°
- Geartype (TKN > Tgear output): ZF-BW7-Bukh
- TA: 34 Nm
-
