SKU:
ALP 9088001/11
€ 527,26
1-2 weeks delivery time
-
+
The M-127 1.1 Centaflex Coupling is designed for pleasure craft propulsion systems, offering a smooth torque transfer and excellent compatibility with specific gear types. It supports up to 250 Nm of torque and ensures reliable performance under misalignment with a maximum RPM of 4500.
- Description
- Ask a Question
-

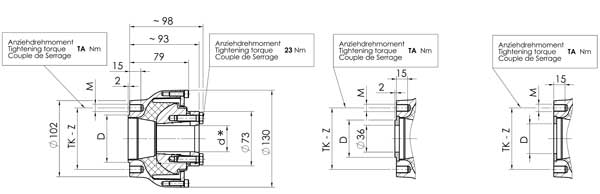

Centaflex Coupling, M-127 1.1, Max. 250nm (Pleasure Craft), D=66,65mm, Tk=82,5mm, Z=4x90°, M=M10
Robust and adaptable coupling unit intended for pleasure craft propulsion systems. Engineered to accommodate angular misalignment while maintaining smooth torque transfer and compatibility with specific gear models.
- Article number: 9088001/11
- EAN number: 8719182662754
- Model: M-127-K1.1-*
- Max. rpm: 4500
- Commercial use: 175 Nm
- Pleasure use: 250 Nm
- Max. allowable angular misalignment: 2°
- Size D (mm): 66,65
- Size M (mm): M10
- Size Tk (mm): 82,5
- Size Z (mm): 4x90°
- Gear type (TKN > Tgear output): Paragon ES40 (Gear flange to be bored to Ø10,5)
- TA (Nm): 45
-
