SKU:
ALP 9088012
€ 1.303,24
1-2 weeks delivery time
-
+
The AM-50 Centaflex coupling offers exceptional torque handling, reaching up to 870 Nm for pleasure craft applications. Built for stable and efficient performance, it supports angular misalignment up to 2° and operates at a maximum RPM of 4000, making it reliable for both commercial and pleasure marine systems.
- Description
- Ask a Question
-

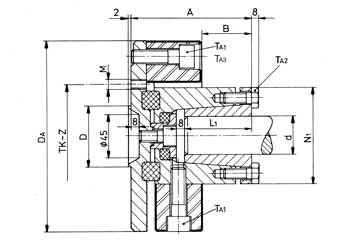

Centaflex Coupling, AM-50 1.2, Max. 870nm (Pleasure Craft), D=63,5mm, Tk=108mm, Z=8x45°, M=M10
The AM-50 1.2 Centaflex Coupling offers enhanced torque handling for pleasure and commercial vessels, reaching up to 870nm. With an angular misalignment tolerance of 2°, it's built for stable and efficient inboard performance.
- Model: AM-050
- Article number: 9088012
- EAN number: 8719182664734
- Maximum RPM: 4000
- Torque (Commercial): 500nm
- Torque (Pleasure): 870nm
- Max. allowed angular misalignment: 2°
- Size D: 63,5mm
- Size Tk: 108mm
- Size Z: 8x45°
- Mounting: M10
-
