SKU:
ALP 9088014
€ 3.053,53
1-2 weeks delivery time
-
+
The Centaflex AM-140 coupling is designed for high-performance marine propulsion systems. It offers a maximum torque of 1875 Nm and supports a maximum RPM of 3600, compensating for angular misalignment up to 2° while ensuring smooth torque transmission for both commercial and pleasure craft applications.
- Description
- Ask a Question
-

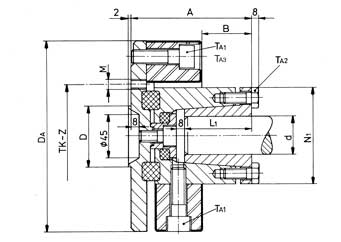

Centaflex Coupling, AM-140 1.2, Max. 1875nm (Pleasure Craft), D=63,5mm, Tk=108mm, Z=8x45°, M=M10
Engineered for high-performance marine propulsion systems, the Centaflex AM-140 coupling ensures smooth torque transmission and compensates for misalignment. Suitable for both commercial and pleasure applications, this model is built for durability and precision.
- Article number: 9088014
- EAN number: 8719182664734
- Model: AM-140
- Max. RPM: 3600
- Torque capacity (commercial): 1200 Nm
- Torque capacity (pleasure): 1875 Nm
- Max. allowable angular misalignment: 2°
- Size D: 63,5 mm
- Size Tk: 108 mm
- Size Z: 8x45°
- Thread size: M10
-
