Centaflex AGM CV Joint

1-2 weeks delivery time
Price incl. 19% VAT

Diameter, mm:

20-35
20-40
35-50
35-60
50-127
50-165
50-80

Item:

AGM 08
AGM 16
AGM 25
AGM 30
AGM 50
AGM 90
AGM 140
AGM 200
AGM 250
AGM 400
AGM 600

The Centaflex AGM CV Joint is an advanced coupling solution, designed for high flexibility and reliable power transmission in marine and industrial applications. Available in a wide range of sizes, it provides torque capacities ranging from 250 Nm to 7500 Nm. This coupling ensures smooth operation, reduces vibrations, and supports optimal performance in various powertrain configurations, making it an ideal choice for yachts, boats, and commercial vessels.

Description
Ask a Question

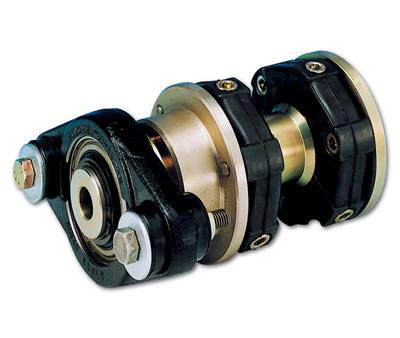

Centaflex AGM CV Joint

The Centaflex AGM CV Joint is a flexible and durable coupling designed for efficient torque transmission and vibration reduction in marine and industrial applications. With a wide selection of sizes ranging from 20 mm to 165 mm in diameter, this coupling is perfect for use in yachts, boats, and commercial vessels. Its design ensures smooth operation even at high loads, with torque capacities ranging from 250 Nm to 7500 Nm. The Centaflex AGM CV Joint is known for its reliability and long service life, even in demanding marine environments.

Key Features:

High flexibility for vibration reduction
Wide range of sizes to suit various applications
Reliable torque transmission with minimal maintenance
Capacity to handle torque from 250 Nm to 7500 Nm
Suitable for marine and industrial use
Reduces vibrations for smoother operation

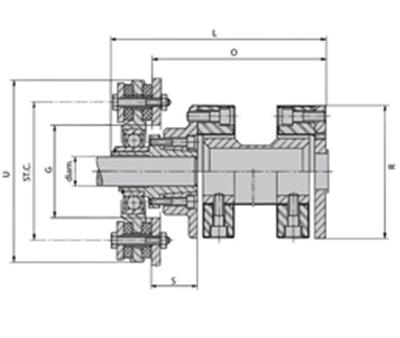

Available Sizes and Technical Data:

Type	As Diameter	L	øR	O	S	øD	Max RPM	Max Torque	Art. Code
AGM 08	20-35 mm	90 mm	120 mm	50 mm	65 mm	80 mm	4500 rpm	250 Nm	94701
AGM 16	20-35 mm	90 mm	130 mm	55 mm	70 mm	85 mm	4500 rpm	300 Nm	94702
AGM 25	20-40 mm	110 mm	145 mm	60 mm	80 mm	95 mm	4500 rpm	350 Nm	94703
AGM 30	20-40 mm	115 mm	150 mm	65 mm	85 mm	100 mm	4500 rpm	400 Nm	94704
AGM 50	35-50 mm	130 mm	180 mm	70 mm	95 mm	120 mm	4000 rpm	500 Nm	94705
AGM 90	35-50 mm	140 mm	200 mm	80 mm	110 mm	130 mm	4000 rpm	600 Nm	94706
AGM 140	35-60 mm	150 mm	220 mm	90 mm	120 mm	140 mm	3500 rpm	1000 Nm	94707
AGM 200	50-80 mm	160 mm	240 mm	100 mm	130 mm	160 mm	3500 rpm	1500 Nm	94708
AGM 250	50-80 mm	170 mm	260 mm	110 mm	140 mm	170 mm	3000 rpm	2000 Nm	94709
AGM 400	50-127 mm	200 mm	300 mm	120 mm	160 mm	200 mm	2500 rpm	5000 Nm	94710
AGM 600	50-165 mm	250 mm	350 mm	140 mm	180 mm	220 mm	2500 rpm	7500 Nm	94711
