€ 811,62
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
Diameter, mm:
- 20
- 22
- 25
- 30
- 35
- 40
- 45
- 50
- 60
- 70
- 80
- 90
- 100
Item:
- 2 knives
- 3 knives
- 4 knives

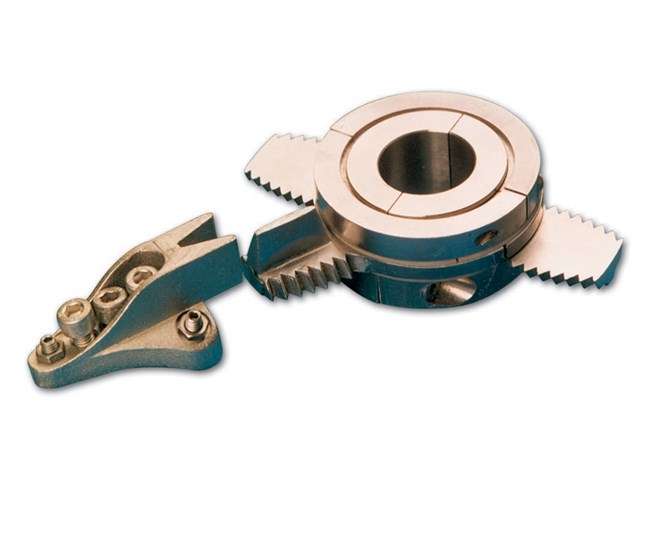

Pre-screw cutter. It is necessary to take into account the number of knives under the blades of the screw. 2 blades 2 and 3 blades, 3 blades - 3 and 5 blades, 4 blades - 4 blades. Used to protect the screw from networks, wire, packets, etc.
- Description
- Ask a Question
-
The pre-screw cutter can be installed without removing the screw. Used to protect the screw from networks, wire, packets, etc.
Dimensions of pre-screw cutters:
№ Shaft Diameter
Number of knives
Size ØB Size ØF Size E
Size L 1 20 mm 2 sht. 55 mm 100 mm 36 mm 60 mm 2 22 mm 2 sht. 55 mm 100 mm 36 mm 60 mm 3 25 mm 2 sht. 66 mm 120 mm 40 mm 60 mm 4 30 mm 2 sht. 66 mm 120 mm 40 mm 60 mm 5 35 mm 2 sht. 66 mm 120 mm 40 mm 60 mm 6 25 mm 3 sht. 66 mm 120 mm 40 mm 60 mm 7 30 mm 3 sht. 66 mm 120 mm 40 mm 60 mm 8 35 mm 3 sht. 66 mm 120 mm 40 mm 60 mm 9 40 mm 2 sht. 86 mm 150 mm 50 mm 60 mm 10 45 mm 2 sht. 86 mm 150 mm 50 mm 60 mm 11 50 mm 2 sht. 86 mm 150 mm 50 mm 60 mm 12 40 mm 3 sht. 86 mm 150 mm 50 mm 60 mm 13 45 mm 3 sht. 86 mm 150 mm 50 mm 60 mm 14 50 mm 3 sht. 110 mm 180 mm 55 mm 60 mm 15 70 mm 3 sht. 110 mm 180 mm 55 mm 60 mm 16 50 mm 4 sht. 110 mm 180 mm 65 mm 60 mm 17 60 mm 4 sht. 110 mm 180 mm 65 mm 60 mm 18 70 mm 4 sht. 110 mm 180 mm 65 mm 60 mm 19 80 mm 3 sht. 165 mm 280 mm 60 mm 90 mm 20 90 mm 3 sht. 165 mm 280 mm 60 mm 90 mm 21 80 mm 4 sht. 165 mm 280 mm 70 mm 90 mm 22 90 mm 4 sht. 165 mm 280 mm 70 mm 90 mm 23 100 mm 4 sht. 165 mm 280 mm 70 mm 90 mm Yacht-Supply24.com team will help you to find a propulsion system for your yacht or boat. Please contact our managers or feedback form .
Exalto Catalog Parts: 2052020. 2052022. 2102025. 2102030. 2102035. 2103025. 2103030. 2103035. 2152040. 2152045. 2152050. 2153040. 2153045. 2203050. 2203070. 2204050. 2204060. 2204070. 2303080. 2303090. 2304080. 2304090. 2304100 -
