SKU:
VDM SFE706007
€ 55,08
1-2 weeks delivery time
-
+
The FF 2-Way Stainless Steel Ball Valve (PN50 - 1''1/4) is a robust 2-piece valve designed for full bore applications, ensuring efficient fluid control. It is compatible with common fluids and air, operating at temperatures ranging from -20°C to +180°C at zero pressure, with a maximum pressure of 8 bar. The valve features an ASTM A351 CF8M stainless steel body, 316 stainless steel sphere and shaft, PTFE seat filled with fiberglass, and a padlockable handle, with cylindrical BSP tapping for connection, adhering to Directive 2014/68/EU standards.
- Description
- Ask a Question
-

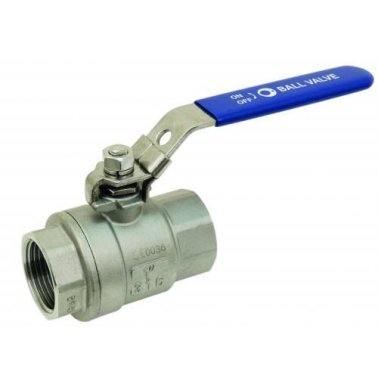

FF 2-Way Stainless Steel Ball Valve - PN50 - 1''1/4
This robust 2-piece stainless steel ball valve is designed for full bore applications, ensuring efficient fluid control.
- Uses: Compatible with common fluids, air (Max 8 bar at ambient temperature)
- Temperature limits: -20°C to +180°C at zero pressure
- Material: ASTM A351 CF8M stainless steel body
- Sphere and shaft: 316 stainless steel
- Seat: PTFE filled with 15% fiberglass
- Gland seal: PTFE
- Handle: Padlockable handle and nut made of 304 stainless steel
- Axis: Non-ejectable
- Connection: Cylindrical BSP tapping
- Normalization: Directive 2014/68/EU EC No. 0035 or 0036
VDM - Reya SKU: SFE706007
EAN CODE: 3598781102053 -
