SKU:
VDM SFE582003
€ 4,85
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The MM 2-Way Brass Ball Valve (PN40 - 3/8'') is versatile and ideal for various fluid handling applications, compatible with all fluids such as fuel oil, diesel, glycol water, and compressed air at 6 Bars. It operates within a temperature range of 0°C to +110°C, constructed with a nickel-plated hot-forged brass body and chrome-plated brass sphere, along with PTFE seals and a reversible handle, adhering to Directive 2014/68/EU standards.
- Description
- Ask a Question
-

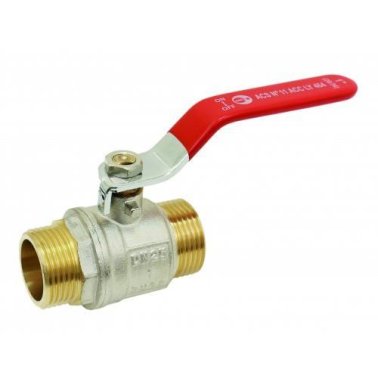

MM 2-Way Brass Ball Valve - PN40 - 3/8''
This versatile ball valve is ideal for various fluid handling applications.
- Uses: Compatible with all fluids (fuel oil, diesel, glycol water) and compressed air (6 Bars)
- Temperature Limits: 0°C to +110°C
- Specifications:
- Nickel-plated hot-forged brass body CW617N (except thread)
- Brass sphere CW614N hot-stamped, chrome-plated
- PTFE sphere seal and cable gland
- Non-ejectable axis
- Reversible handle
- Connection: BSP Cylindrical
- Normalizations: Directive 2014/68/EU: Excluded products (Articles 1, §2.b) TiSA
VDM - Reya SKU: SFE582003
EAN CODE: 3700111701465 -
