SKU:
CN TR-148003
€ 164,77
1-2 weeks delivery time
-
+
This V-shaped Silent Marine engine mount offers improved vibration isolation with a maximum weight capacity of 75 kg. It functions by using shear and compression forces within the rubber component. The upper metal part is installed with a pin, while the base plate attaches to the chassis. The mount is designed for low suspended unit loads and high deflection requirements, ensuring optimal performance in marine applications.
- Description
- Ask a Question
-

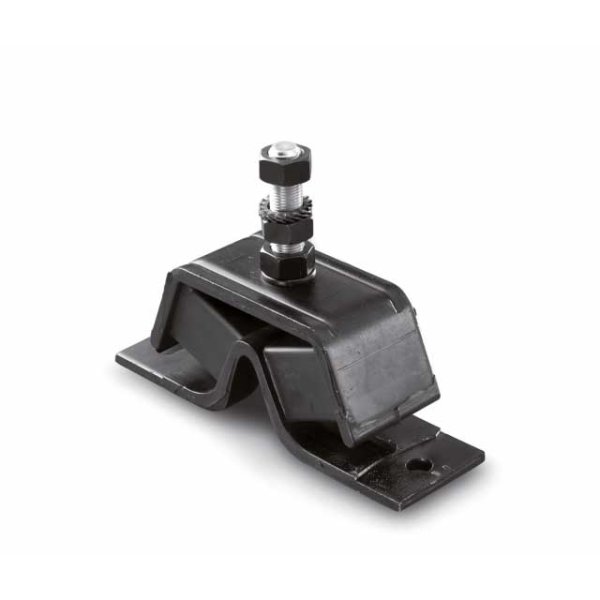

V-Shaped Marine Engine Mount - Max. Weight 75 kg
This V-shaped Silent Marine engine mount combines shear and compression forces in the rubber section for effective vibration isolation. It is made of two metal parts separated by the rubber component. The upper metal part is installed with a pin, and the base plate attaches to the chassis via two holes. The mount is designed for applications with low suspended loads and a high deflection requirement to provide superior vibration isolation.

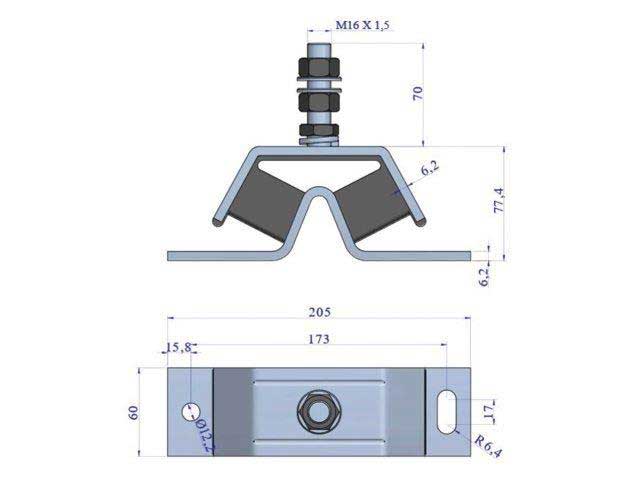

- Pitch: 173 mm
- Pin size: M16
- Max. weight: 75 kg
- Rigidity (in Shore): 50
-
