SKU:
CN TR-148001
€ 164,77
1-2 weeks delivery time
-
+
The V-shaped Silent Marine engine mount is engineered to handle low suspended unit loads with high deflection, providing excellent vibration isolation. The rubber component absorbs shear and compression forces, while the mount consists of two metal parts secured by a pin and base plate. It is ideal for applications requiring effective vibration control in marine settings, with a maximum weight capacity of 40 kg.
- Description
- Ask a Question
-

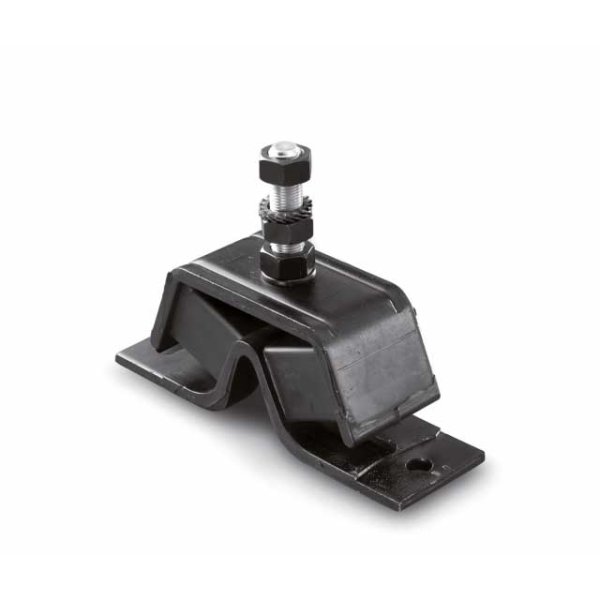

V-Shaped Marine Engine Mount - Max. Weight 40 kg
The V-shaped Silent Marine engine mount operates by utilizing both shear and compression in the rubber component. It consists of two metal parts that are separated by the rubber piece. The installation process involves securing the upper metal part with a pin and attaching the base plate to the chassis using two holes. This engine mount is ideal for applications with low suspended unit loads, offering high deflection to achieve exceptional vibration isolation.

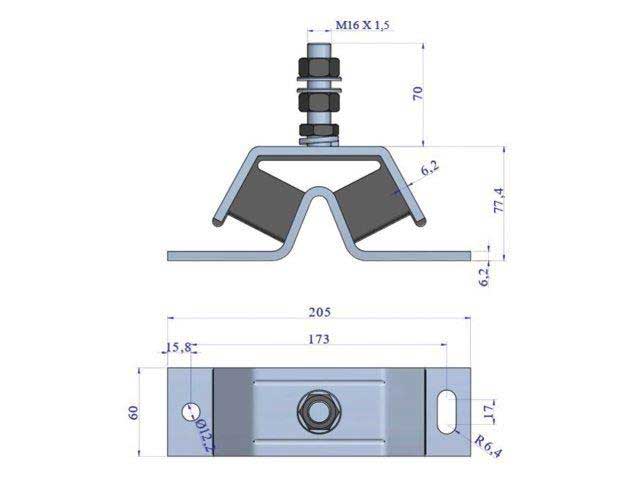

- Pitch: 173 mm
- Pin size: M16
- Max. weight: 40 kg
- Rigidity (in Shore): 40
-
