SKU:
CN TR-148006
€ 164,77
1-2 weeks delivery time
-
+
The V-shaped Silent Marine engine mount is designed for a maximum weight of 150 kg and provides excellent vibration isolation. The rubber component absorbs shear and compression forces, while the mount consists of two metal parts secured by a pin and base plate. It is perfect for low suspended unit loads with high deflection, offering optimal performance in marine applications.
- Description
- Ask a Question
-

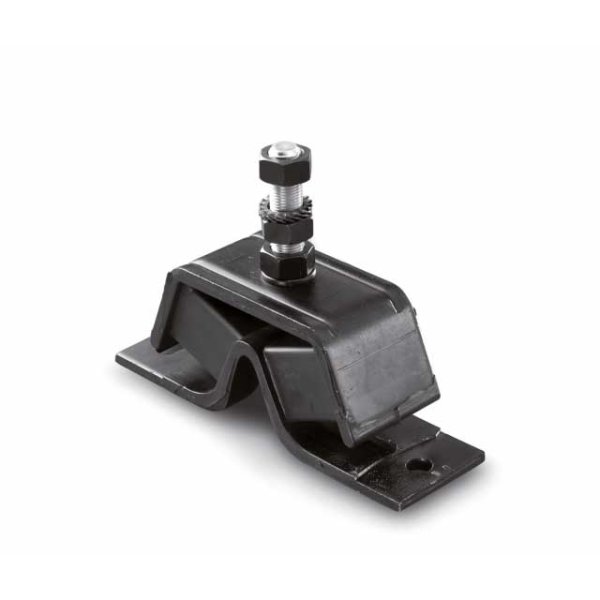

V-Shaped Marine Engine Mount - Max. Weight 150 kg
Designed with shear and compression capabilities in the rubber component, the V-shaped Silent Marine engine mount consists of two metal parts separated by rubber. Installation is completed by pinning the upper metal part and securing the base plate to the chassis with two holes. This mount is perfect for applications that require low suspended loads and high deflection, offering excellent vibration isolation.

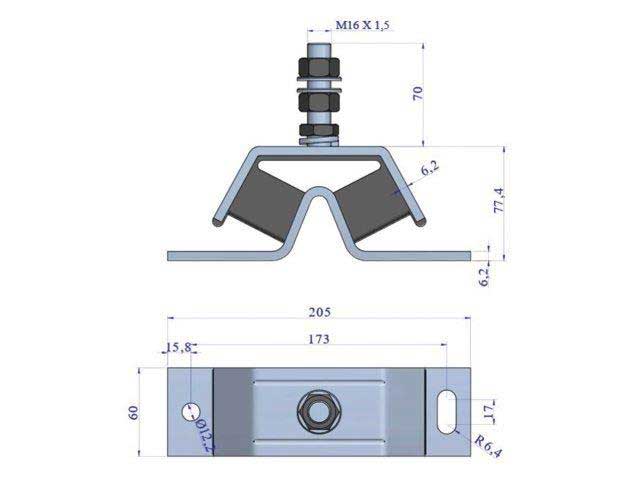

- Pitch: 173 mm
- Pin size: M16
- Max. weight: 150 kg
- Rigidity (in Shore): 70
-
