SKU:
CN TR-148004
€ 164,77
1-2 weeks delivery time
-
+
The V-shaped Silent Marine engine mount for a maximum weight of 100 kg is designed to absorb both shear and compression in the rubber component for superior vibration isolation. It features two metal parts separated by rubber, with installation using a pin on the upper part and two holes in the base plate. This mount is ideal for low suspended loads and applications requiring high deflection, ensuring effective vibration isolation in marine environments.
- Description
- Ask a Question
-

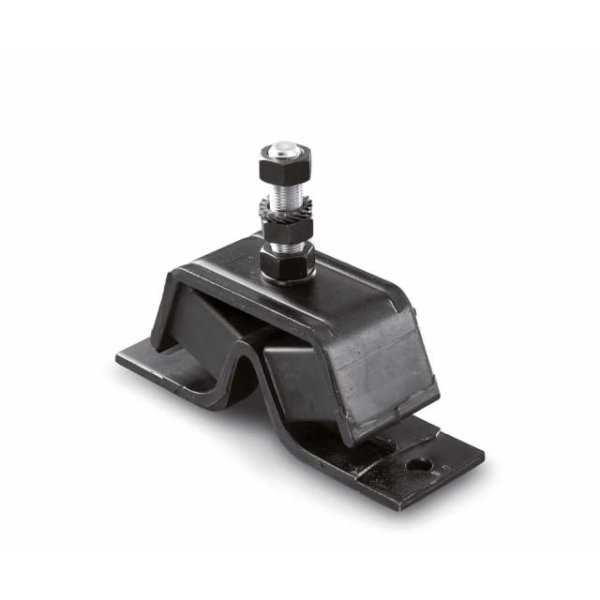

V-Shaped Marine Engine Mount - Max. Weight 100 kg
The V-shaped Silent Marine engine mount is designed to absorb both shear and compression in the rubber component. The mount consists of two metal parts separated by rubber, with installation achieved through a pin on the upper metal part and two holes in the base plate for chassis attachment. This engine mount is used in situations with low suspended unit loads and a need for high deflection to ensure high levels of vibration isolation.

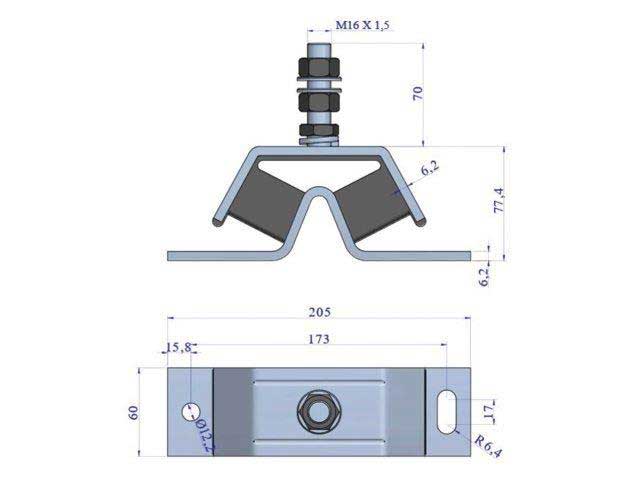

- Pitch: 173 mm
- Pin size: M16
- Max. weight: 100 kg
- Rigidity (in Shore): 60
-
