SKU:
CN N4080E354
€ 25.235,69
1-2 weeks delivery time
-
+
The Nanni N4.80 with Gearbox ZF25H and Reduction 2.80 is a high-performance marine engine that provides 79 horsepower. It features a turbocharged and intercooled air intake, indirect E-TVCS fuel system, and closed cooling with heat exchanger and air-cooled options. Designed with a 4-cylinder configuration, it meets EPA marine Tier 3 standards and offers efficient fuel consumption. The engine has a dry weight of 275 kg with TMC345A and a reduction ratio of 2.80, making it ideal for various marine applications.
- Description
- Ask a Question
-

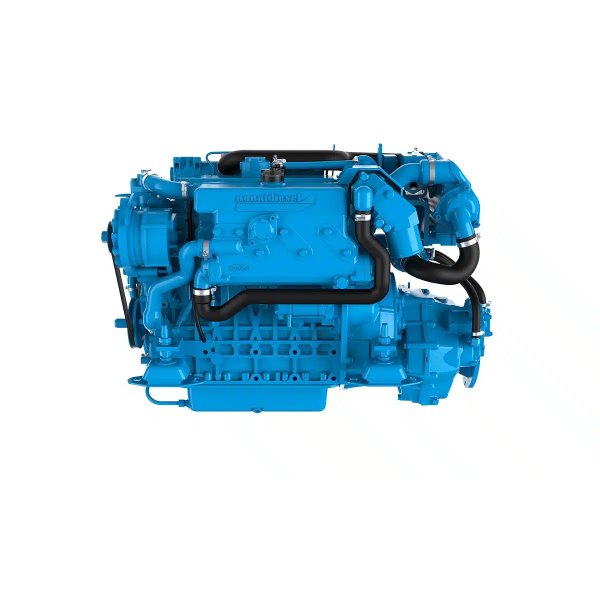

Nanni N4.80, Gearbox ZF25H, Reduction 2.80
The Nanni N4.80 with Gearbox ZF25H and Reduction 2.80 is a high-performance marine engine offering remarkable power and reliability. Here are the key specifications and features:
- Power at crankshaft: 57.4 kW [79 hp] / 52.9 kW [72 hp] SD
- Displacement: 2.434 l [148.5 in³]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 87 x 102.4 mm [3.43 x 4.03 in]
- Compression ratio: 23:1
- Rated speed: 2700 rpm
- Idle speed: 850 rpm
- Peak torque: 220 Nm
- Peak torque speed: 1800 rpm
- Engine base: Kubota
- Fuel system: Indirect E-TVCS (Three Vortex Combustion System)
- Air intake: Turbocharged & intercooled
- Cooling: Closed cooling with heat exchanger and air-cooled
- Maximum mounting angle: 15° front down / 15° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M5
- Emission standards: EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with TMC345A: 275 kg [606 lbs]
- Dry weight with SD12: 296 kg [652 lbs]
- Horsepower (kW): 78 (57.4)
- RPM: 2700
- Cylinders / Displacement (cm³): 4 / 2434
- Gearbox: ZF25H
- Reduction: 2.80
- Panel: C4
-
