SKU:
CN N4080E394
€ 25.200,42
1-2 weeks delivery time
-
+
The Nanni N4.80 with Gearbox ZF25A and Reduction 2.70 is a powerful marine engine that offers 79 horsepower with a 4-cylinder, 4-stroke diesel design. It is turbocharged, intercooled, and features a closed cooling system. The engine meets EPA marine Tier 3 standards, ensuring efficient performance. With a dry weight of 275 kg and a reduction ratio of 2.70, the engine is well-suited for demanding marine environments, providing both power and reliability.
- Description
- Ask a Question
-

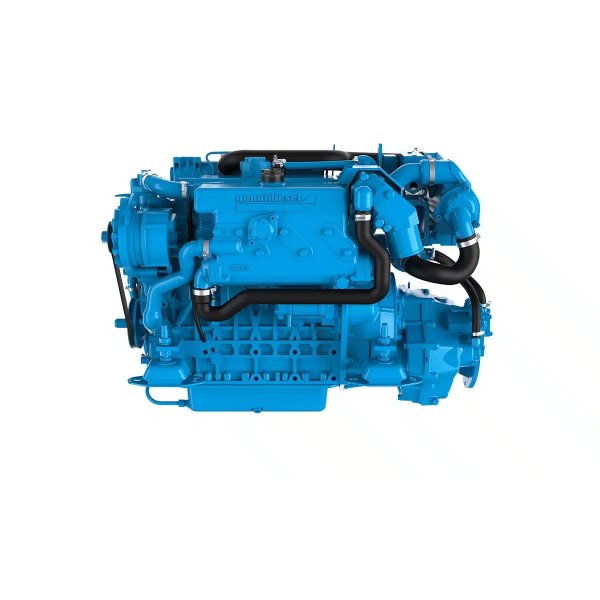

Nanni N4.80, Gearbox ZF25A, Reduction 2.70
The Nanni N4.80 with Gearbox ZF25A and Reduction 2.70 is engineered for optimal performance, providing strong power output and efficient fuel consumption. Below are its specifications:
- Power at crankshaft: 57.4 kW [79 hp] / 52.9 kW [72 hp] SD
- Displacement: 2.434 l [148.5 in³]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 87 x 102.4 mm [3.43 x 4.03 in]
- Compression ratio: 23:1
- Rated speed: 2700 rpm
- Idle speed: 850 rpm
- Peak torque: 220 Nm
- Peak torque speed: 1800 rpm
- Engine base: Kubota
- Fuel system: Indirect E-TVCS (Three Vortex Combustion System)
- Air intake: Turbocharged & intercooled
- Cooling: Closed cooling with heat exchanger and air-cooled
- Maximum mounting angle: 15° front down / 15° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M5
- Emission standards: EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with TMC345A: 275 kg [606 lbs]
- Dry weight with SD12: 296 kg [652 lbs]
- Horsepower (kW): 78 (57.4)
- RPM: 2700
- Cylinders / Displacement (cm³): 4 / 2434
- Gearbox: ZF25A
- Reduction: 2.70
- Panel: C4
-
